DAB-ESYTANK - Drinking Water Storage Tank for DAB E.SYBOX

Code: 805121

Print
Product Code
DAB ESYTANK
RRP: $2714.00

Where to Buy

Find Your Nearest Store
Technical Specifications
Brand DAB Pumps
Litres 480
Pack Weight (KG):
60.00
Description

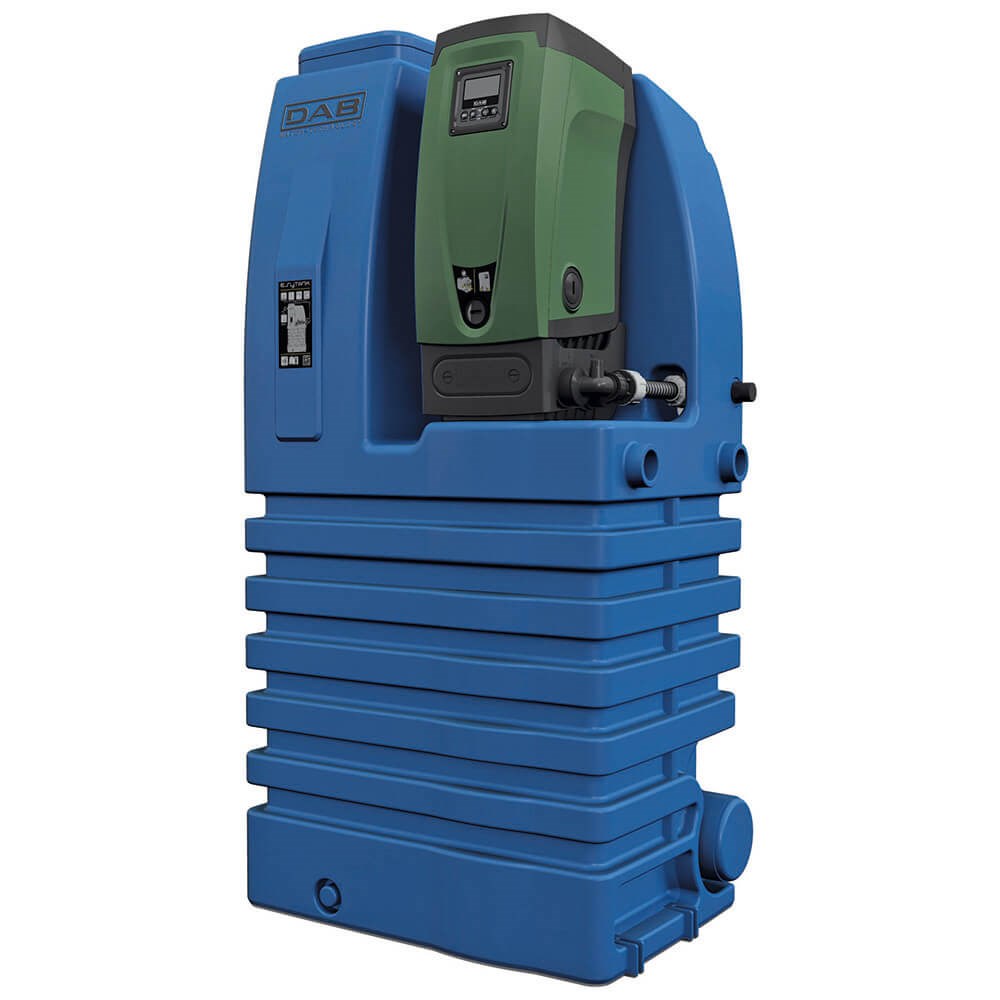

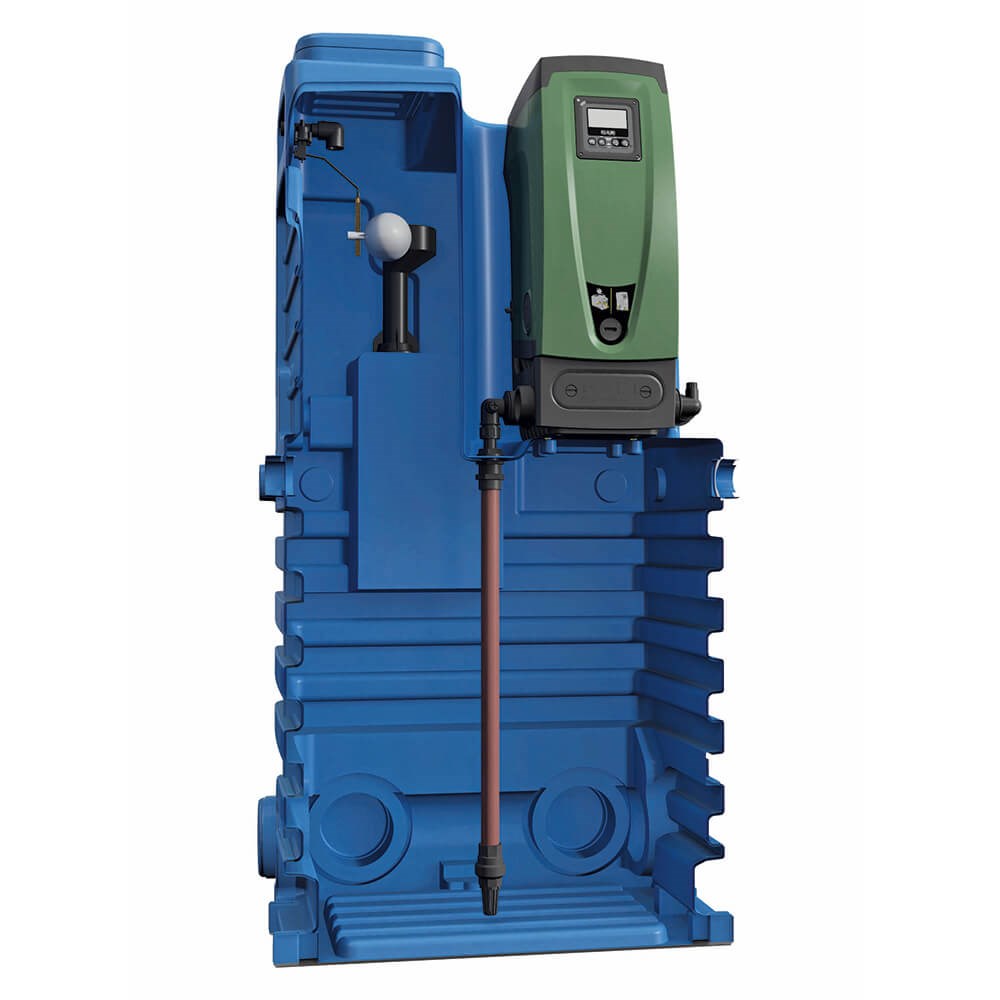

E.SYTANK is designed as a break tank between mains and E.SYBOX. It has a net capacity of 480 litres and is suitable for drinking water. It has a valve for filling from the mains with a float and an overflow system. The tank is complete with an E.SYDOCK, a suction pipe with footvalve, and a delivery pipe.

Pump sold separately

Features

Used where direct connection to incoming water mains is not legal or input flow is lower than pump output.

Maximum liquid temperature: 40°C
Maximum environment temperature: 50°C
Maximum capacity: 480 litres
Dimensions of mains water inlet pipe: ¾”
Dimensions of delivery pipe: 1”
Dimensions of overflow pipe connection: 2”
Dimensions of front discharge (not drilled): 1-1/4”
Dimensions of discharge lower discharge (not drilled): DN20

NoITEMS MATERIALS
1480 LITRE TANKLINEAR HIGH-DENSITY POLYETHYLENE. HDPE
2INSPECTION COVERLINER LOW-DENSITY POLYETHYLENE. LDPE
3SERVO-CONTROLLED FLOAT VALVE(NYLON) PA 66 GLASS FIBRE REINFORCED, STAINLESS STEEL, EPDM, PPH, BRASS CW508L
4OVERFLOWPP POLYPROPYLENE 30% GLASS FIBRE
5SUCTION PIPE WITH FOOT VALVEPOLYPROPYLENE HOMOPOLYMER, POM
6DELIVERY PIPEPOLYPROPYLENE HOMOPOLYMER
7AUXILIARY DELIVERY PIPEPOLYPROPYLENE HOMOPOLYMER
8E.SYDOCKNYLON 30% FV, PP 30% FV, NBR
Downloads
Product Information and Data Sheets
Download Product Information & Data Sheets v1.0
Spare Parts Information and Exploded Diagrams
Download Spare Parts Information & Exploded Diagrams v1.0
Operation and Installation Manuals
Download Operation & Installation Manuals v1.0
