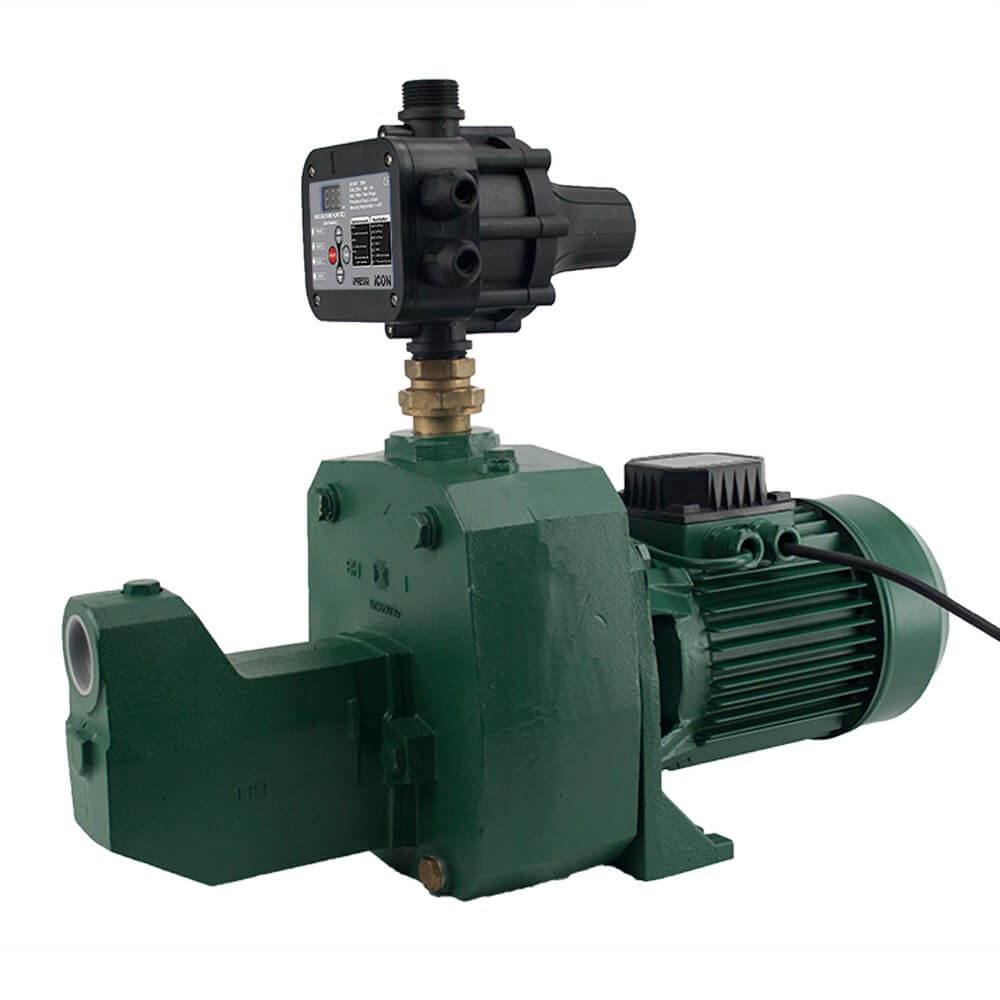

DAB-151MPCI PRESSURE SYSTEM WITH ADJUSTABLE AUTO RESTART CONTROLLER 75L/M 61M 1.1KW 240V

Code: 804779

Print
Product Code
DAB-151MPCI
RRP: $1655.00

Where to Buy

Find Your Nearest Store
Technical Specifications
Brand DAB Pumps
Product Type Pressure System
Suitable For Clean Water
Bar 6.1 Bar
Amps 7.2 Amps
Flow Range Category a. 0 - 99 L/min
Flow Rate (L/min) 75 L/min
Hp 1.5 Hp
Kilo Watts 1.1 kW
Head Range Category c. 60 - 99 m
Max Head (m) 61 m
Port Size Inlet 1 1/4" BSPF inlet
Port Size Outlet 1" BSPM outlet
Powered Electric
Taps 8 Taps
Warranty (months) 24 Months
Volts 240 V
Pack Weight (KG):
33.00
Description

DAB iCON Powered Pressure System

Ideal for medium to large homes. Suitable for high density urban applications.

1.1kW, 1.5hp, 240V, max hd 61m, max flow 75L/m, 7 taps. Ports 1-1/4” BSPF In, 1” BSPF Out. Controller with fully adjustable cut in pressure 0.5 to 6 bar.

Downloads
Spare Parts Information and Exploded Diagrams
Download Spare Parts Information & Exploded Diagrams v1.0
Bianco iPRESS Controller Features

Refer to the iPRESS Controller page for more information

  • Starts and stops the pump automatically when the tap is open or closed. This means the operator does not need to turn off the pump after use.
  • Maintains a constant pressure during operation resulting in a reliable water supply when required
  • Automatically stops the pump in the situation of no flow (due to inlet pump blockage) and will automatically resume normal operation once the blockage is removed
  • Automatically restarts normal operation in the event of power being cut off to the control. This gives the homeowner peace of mind that the unit will continue to operate even if they are away on holidays
  • Controller is able to keep the pump running at flows as low as 0.5L/min to maintain water supply
  • Plug and play leads (IEC type) installed on the controller so that a licensed electrician is not required to replace the controller if required
  • Change between Mode 1 (Change Cut In pressure only) and Mode 2 (Change Cut In and cut out) via a single button push.
  • Real time indication of system pressure displayed so a separate in line pressure gauge is not required
  • Special non return valve to avoid water surging.
Spare Parts
Code
Part Number
Description
702211
DABSR00005205 6204DU
702212
DABSR00005206 31.5UF CABLE
702229
DABSR00005242
702308
DABSR00005428
802657
DABS R00009981
702207
DABSR00005199
702129
DABSR00004703
702235
DABSR00005249
702219
DABSR00005213
702214
DABSR00005208
702228
DABSR00005241
702236
DABSR00005250
702252
DABSR00005274
702677
DABSR00007849
702227
DABSR00005240
702217
DABSR00005211
DAB Product Selector

DNA (DAB Navigator Application) lets you search pumps by hydraulic performances, model or article number. You can obtain data sheets, spare parts information, user guides and other technical documentation.

The free registration allows you to save projects and add custom articles to your quotations.
