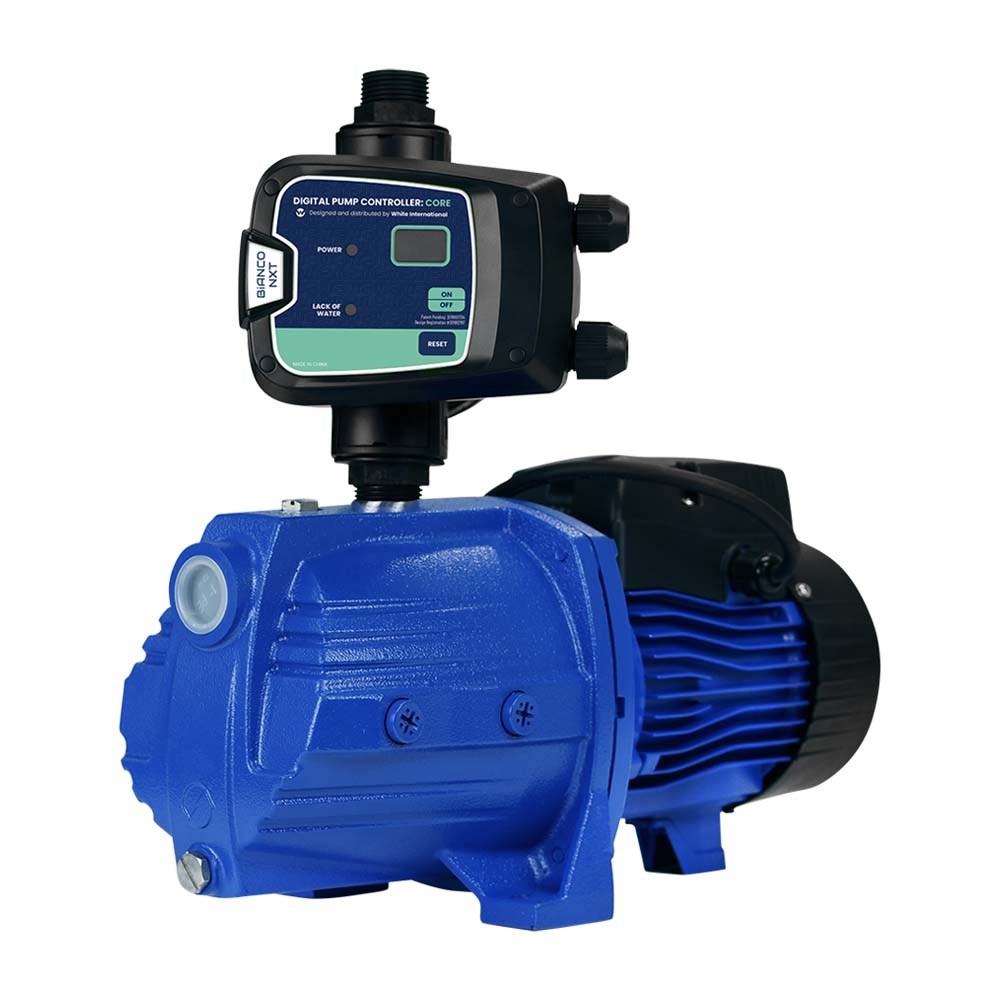

BIA-FERRO60NXT - Cast Iron Surface Mounted Jet Pump with nXt Pump Controller 45m 0.6kW 240V

Code: 808397

Print
Product Code
BIA FERRO60NXT
RRP: $548.90

Where to Buy

Find Your Nearest Store
Technical Specifications
Brand Bianco Pumpz
Suitable For Clean Water
Float No
Hp 0.8 Hp
Kilo Watts 0.6 kW
Max Flow (L/min) 58 L/min
Max Head (m) 45 m
Powered Electric
Warranty (months) 24 months
Volts 240 V
Pack Weight (KG):
0.00
Description

0.6kW, 0.8hp, 240V, max hd 45m, max flow 58L/m, 4 taps. Ports 1” BSPF In, 1” BSPM Out. 2.2 bar controller.

Features

The pump is a self-priming surface mounted pressure system pump supplied with plug and play leads (IEC type) wired and ready to install. The self-priming ability provides excellent suction capacity of up to 9m.

The pump is characterised by:

  • Corrosion resistant pump body, diffuser and impeller to ensure pump durability
  • Cataphoresis1 treatment of pump body for rust prevention to ensure no water discoloration or suspended particles
  • Automatic electronic pump control fitted and wired with plug and play leads so a licensed electrician is not required during installation.
  • Includes fully electronic pump controller for automatic pump starting, stopping and restart after power loss and water loss.
  • Run dry protection to prevent pump damage
  • Automatic electronic control has in-built check valve to prevent water backflow through the pump.
  • High quality mechanical shaft seal and high quality bearings
  • 240V single phase TEFC motor with in-built auto reset thermal overload to prevent the pump from overheating.
  • AS/NZS 4020 Drinking Water Approved for consumer peace of mind

1. Cataphoresis is an electrochemical coating process for metallic surfaces widely used in the industry due to its penetration and long life, either as a priming coat or finished paint for corrosion resistance.

Applications:

Suitable for supplying water to domestic households. Also suitable for small scale garden irrigation.

Package Information:
  • 18kg
  • L 455mm x H 469mm x W 215mm
Warranty

2 Year BIANCO Pumpz Warranty.

Controller

This pump includes the Bianco iCON nXt series of pump controler.

The nXt Controller is designed and tested in Australia to ensure operation in the toughest of environments, combining innovative technology with robust proven architecture to guarantee constant supply of pressurised water when and where you need it the most.



Controller Features
  • Digital display gives you a real time indication of system pressure
  • Anti-cycle Protection
  • Dry run protection with auto restart function that tests for water availability every 24hrs
  • Anti-seize function if pump has not operated for last 24 hours
  • Controller automatically restarts pump after a power failure
  • Easy assembly and removal using push-n-connect fitting with U clip
  • Complies to AS/NZ 4020 drinking water standard
  • Over pressure protection turns pump off when 10 bar is reached
  • Overload protection


Controller Flow Curve


nXt Controller Data
Function ON/OFF
Modes 1
Size 1.5Kw
Rated Voltage 220-240V AC
Max Amps 10
Rated Power 1500w
Rating IP65
Union Size 1"
Start Pressure 2.2 bar (32PSi)
Stop Pressure on no flow
Max Pressure 10 bar (145PSI)
Max Liquid Temp 40°C
Cable to Pump Plug and Play
Flylead for Pump When sold as control only
Power Cable 10AMP
Communication -
Accessories (Sold Separately) -
1 ¼” Union Kit
