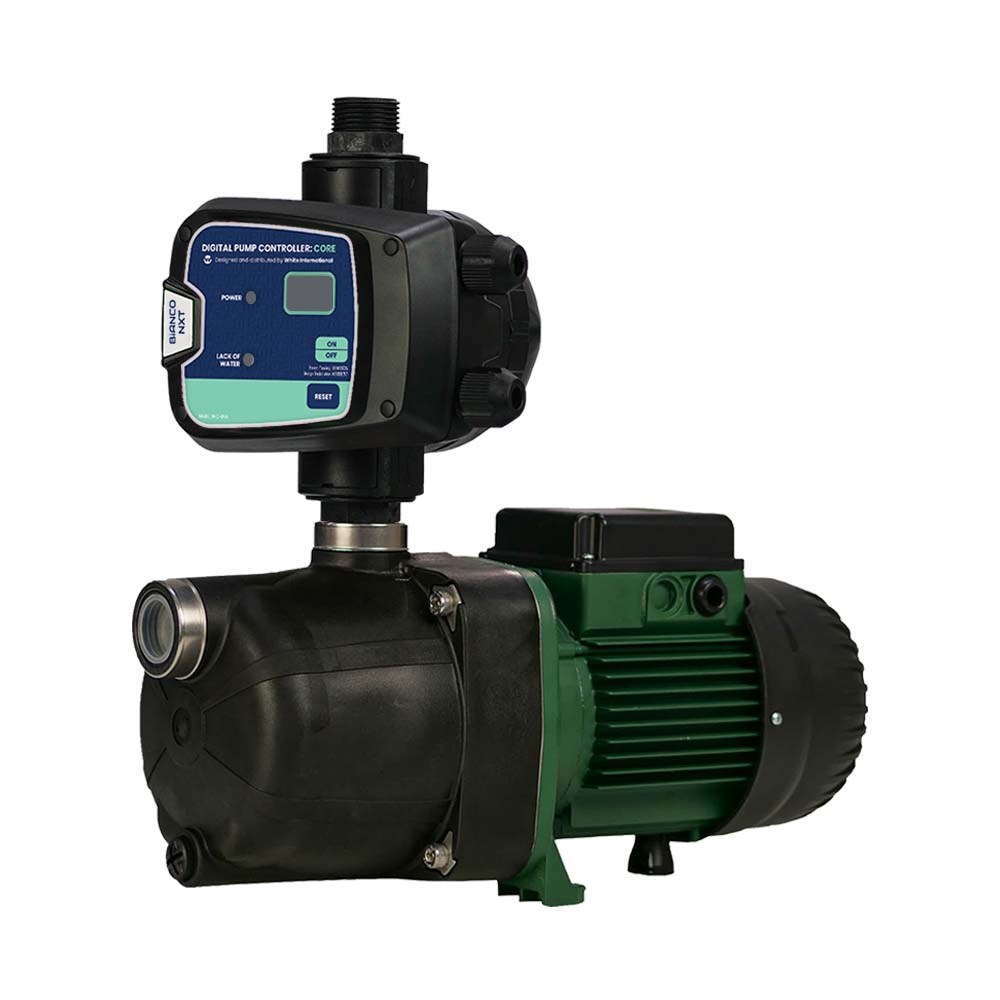

DAB-JETCOM62NXT - Technopolymer Surface Mounted Pump with nXt Controller 42m 0.44kW 240V

Order Code: 808408

Print
Product Code
DAB JETCOM62NXT
RRP: $792.00 incl. GST
Find Your Nearest Store
Product Documents Find a Service Agent
Technical Specifications
Brand DAB Pumps
Product Type Pressure System
Suitable For Clean Water
Bar 4.1
Approval Drinking Water Approval
Amps 3.12
Flow Range Category a. 0 - 99 L/min
Flow Rate (L/min) 45
Float No
Hp 0.6
kPa 411
Kilo Watts 0.44
Max Flow (L/min) 45
Head Range Category b. 40 - 59 m
Max Head (m) 42
Port Size Inlet 1" BSPF inlet
Port Size Outlet 1" BSPM outlet
Powered Electric
Taps 4
Warranty (months) 24
Volts 240
Watts 440
Pack Weight (KG):
9.90
Controller

This pump includes the Bianco iCON nXt series of pump controller.

The nXt Controller is designed and tested in Australia to ensure operation in the toughest of environments, combining innovative technology with robust proven architecture to guarantee constant supply of pressurised water when and where you need it the most.

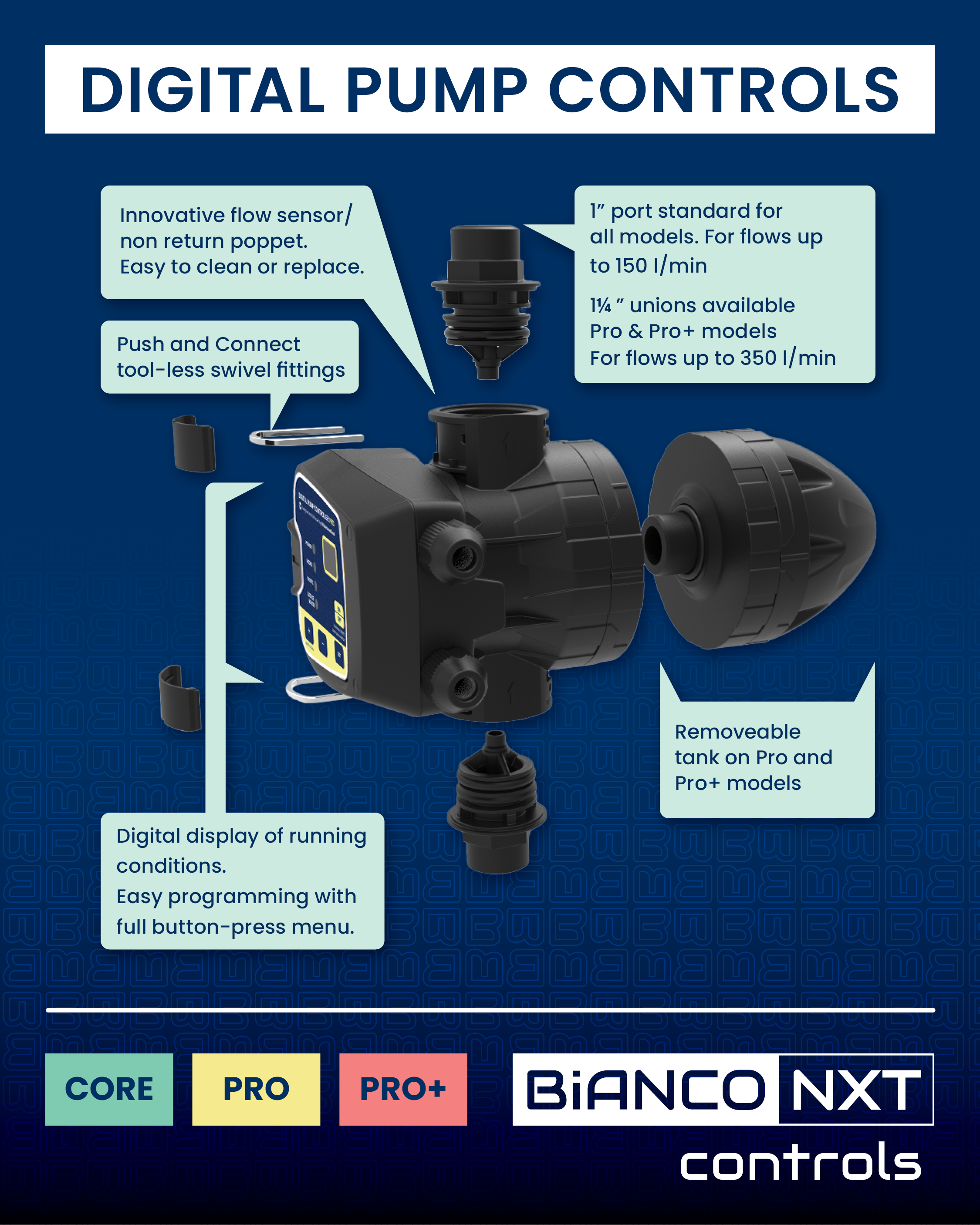

Controller Features
  • Digital display gives you a real time indication of system pressure
  • Anti-cycle Protection
  • Dry run protection with auto restart function that tests for water availability every 24hrs
  • Anti-seize function if pump has not operated for last 24 hours
  • Controller automatically restarts pump after a power failure
  • Easy assembly and removal using push-n-connect fitting with U clip
  • Complies to AS/NZ 4020 drinking water standard
  • Over pressure protection turns pump off when 10 bar is reached
  • Overload protection


Controller Flow Curve


Controller Brochure
View Brochure


nXt Controller Data
Function ON/OFF
Modes 1
Size 1.5Kw
Rated Voltage 220-240V AC
Max Amps 10
Rated Power 1500w
Rating IP65
Union Size 1"
Start Pressure 2.2 bar (32PSi)
Stop Pressure on no flow
Max Pressure 10 bar (145PSI)
Max Liquid Temp 40°C
Cable to Pump Plug and Play
Flylead for Pump When sold as control only
Power Cable 10AMP
Communication -
Accessories (Sold Separately) -
1 ¼” Union Kit

You may also need these:

Similar Products

Spare Parts
Code
Part Number
Description
702135
DABSR00004811
BOARD ACTIVEEI25/30M-N.7
702080
DABSR00004010
DABS R00004010 Impeller - includes diffuser
702082
DABSR00004013
DABS R00004013 ASSEMBLY DIFFUSER JET62M-N.2
702109
DABSR00004187
DABS R00004187 - O RING
702163
DABSR00010751
DABS R00005112 BEARING REAR
702175
DABS R00005129
DABS R00005129 - FRONT BEARING
702079
DABSR00008871 12.5UF
DABS R00008871 - CAPACITOR 12.5UF
702077
DABSR00004002
FAN ACTIVEEI25/30M-N.7
702108
DABSR00004183
FAN GUARD ACTIVEEI25/30M-N.7
702084
DABSR00004017
LOAD PLUG ACTIVEEI25/30M-N.7
702198
DABSR00005173
MOTOR ACTIVEEI25/30M-N.7
702081
DABSR00004011
MOTOR COVER ACTIVEEI25/30M-N.7
702196
DABSR00005171
MOTOR SHAFT JETCOM62M-N.2
702197
DABSR00005172
NUTS AND BOLTS JETCOM62M-N.2
702085
DABSR00004018
PLUG ACTIVEEI25/30M-N.7
702157
DABSR00005106
PUMP BODY JETCOM102M-N.3
702119
DABS R00009575
SEAL ACTIVEJ82M
702083
DABSR00004016
SEAL COVER ACTIVEEI25/30M-N.7
702195
DABSR00005170
SUPPORT JETCOM62M-N.2
