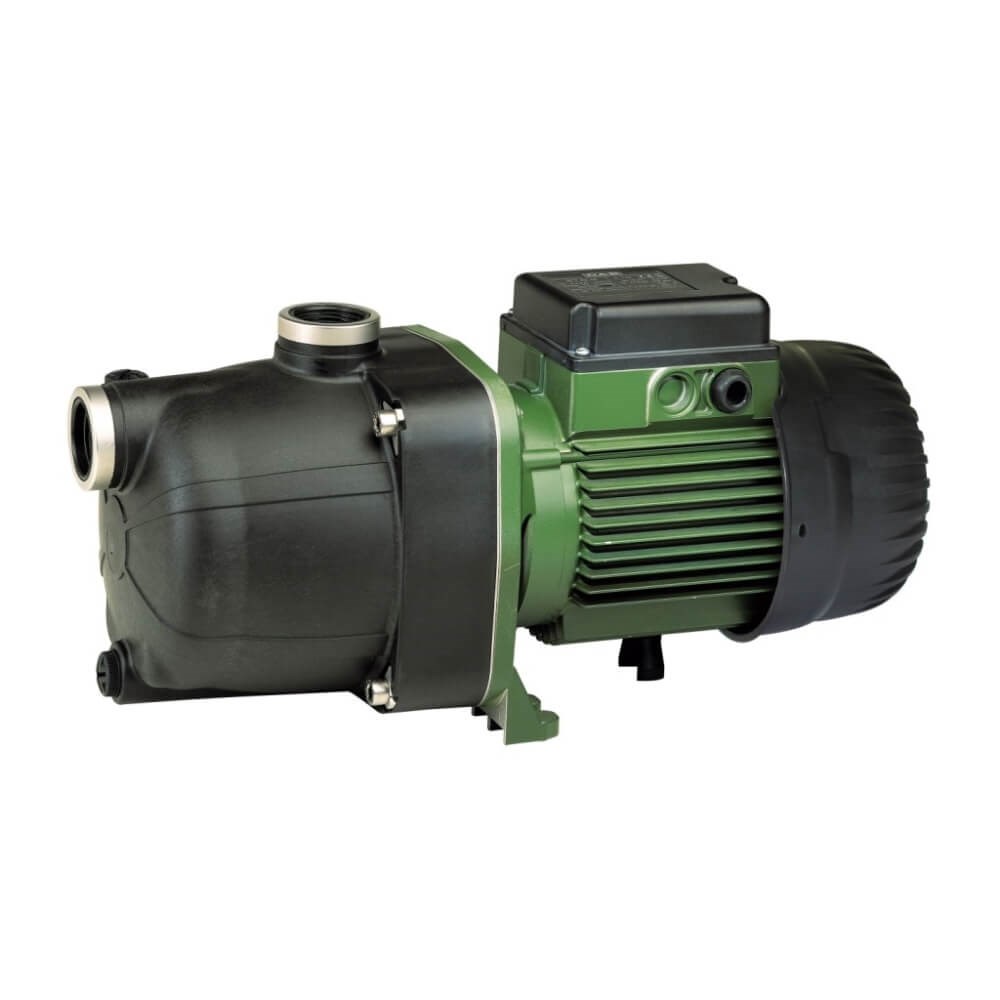

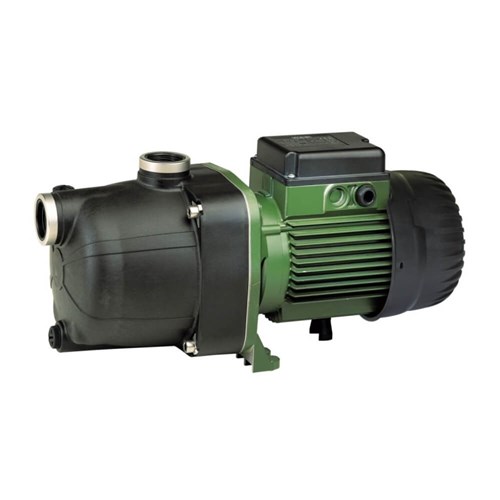

DAB-JETCOM62M - DAB Technopolymer Surface Mounted Pump 45L/min 42m 0.44kW 240V

Code: 800424

Print
Product Code
DAB-JETCOM62M-ANZ-LEAD
RRP: $605.00 incl. GST
Find Your Nearest Store
Technical Specifications
Brand DAB Pumps
Product Type Single Stage Jet Pump
Suitable For Clean Water
Approval Approved For Drinking Water
Flow Range Category a. 0 - 99 L/min
Flow Rate (L/min) 45 L/min
Hp 0.6 Hp
Kilo Watts 0.44 kW
Head Range Category b. 40 - 59 m
Max Head (m) 42
Port Size Inlet 1" BSPF inlet
Port Size Outlet 1" BSPF outlet
Powered Electric
Warranty (months) 24 Months
Volts 240 V
Pack Weight (KG):
7.86
Description
Self Priming Technopolymer Jet Self Priming Pump

0.44kW, 0.6hp, 240V, max hd 42m, max flow 45L/m Ports 1" BSPF In, 1" BSPF Out
Features
  • Corrosion resistant materials
  • AS/NZS 4020 compliant
  • Metal pump body inserts
  • Air gap motor with shaft slinger
  • Machined bearing housings

Self Priming Technopolymer Jet Pumps
  • Suitable for domestic use for water supply and pressurisation, irrigation of gardens and moving water in general
  • DAB Jet pumps are renowned for their unique self-priming and extraordinary deep suction capability up to 9 metres at sea level
  • Available in Technopolymer, they are designed to handle abrasive and corrosive water which makes them ideally suited for spear point applications


Benefits
  • Reliable in arduous suction conditions
  • Safe for drinking water
  • Longer life
  • Repairable
  • Robust and self priming design
Advantages
  • Proven efficient performance
  • Will self prime to 9 metres
  • Will not corrode
  • No hazardous materials used
  • Nickel plated brass inserts strengthens pump body
  • Does not let water into motor if seal fails
  • Correct tolerances
Warranty

2 Year DAB Pumps Warranty

Drinking Water Approved
AS/NZS 4020 drinking water approved

AS/NZS 4020 Drinking Water Approved.

Pumps that are AS/NZS 4020 Drinking Water Approved Offer peace-of-mind.

This approval ensures that the pump will not contribute any toxic materials or metals to the liquid being pumped, won’t support the growth of micro-organisms and won’t change the taste or appearance of your water. Read More...

DAB Product Selector

DNA (DAB Navigator Application) lets you search pumps by hydraulic performances, model or article number. You can obtain data sheets, spare parts information, user guides and other technical documentation.

The free registration allows you to save projects and add custom articles to your quotations.
