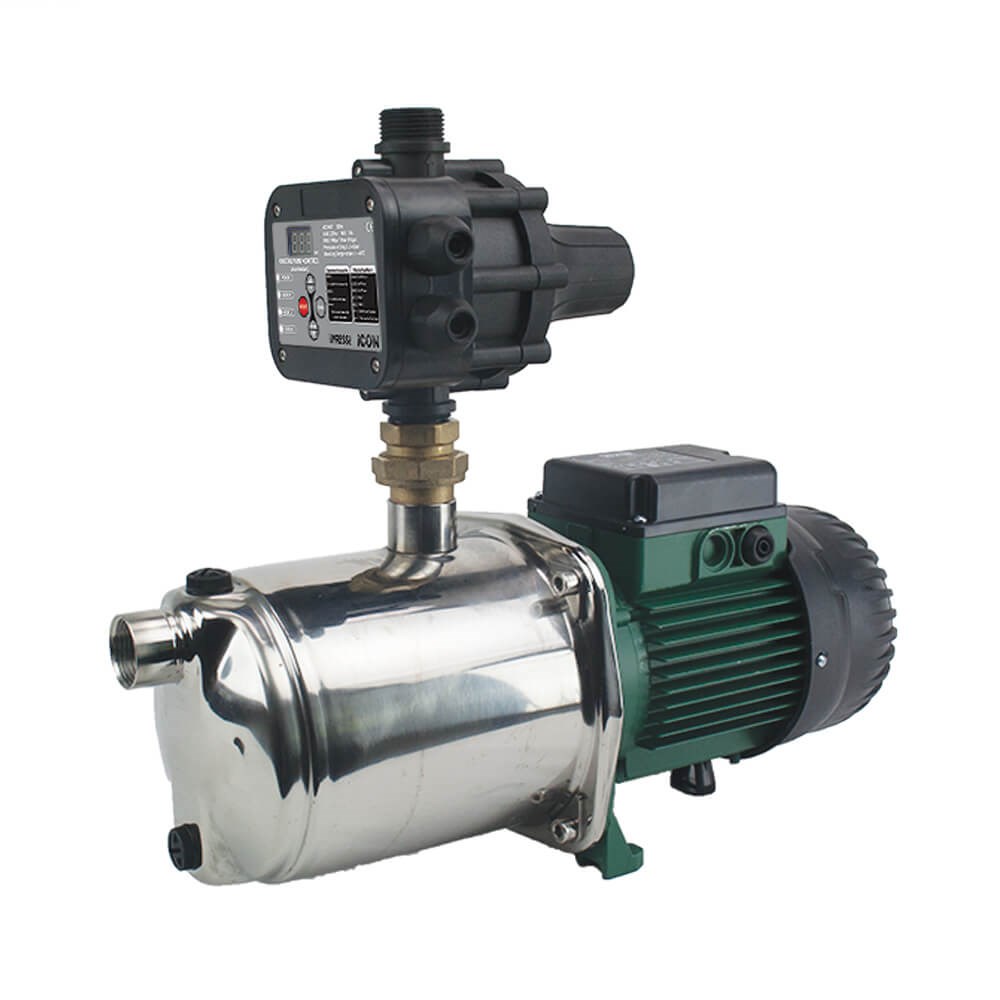

DAB-EUROINOX40/80MPCI - PUMP SURFACE MOUNT MULTISTAGE WITH AUTO PUMP CONTROL 120L/MIN 59M

Code: 804788

Print
Product Code
DAB-EUROINOX40/80MPCI
RRP: $1440.00

Where to Buy

Find Your Nearest Store
Technical Specifications
Product Type Pressure System
Brand DAB Pumps
Suitable For Clean Water
Bar 5.9 Bar
Approval Approved For Drinking Water
Flow Range Category b. 100 - 199 L/min
Flow Rate (L/min) 120 L/min
Hp 1.36 Hp
kPa 598 kPa
Kilo Watts 1 kW
Head Range Category b. 40 - 59 m
Head (max) 59 m
Port Size Inlet 1" BSPF inlet
Port Size Outlet 1" BSPM outlet
Powered Electric
Taps 12 Taps
Volts 240 V
Warranty (months) 24 Months
Watts 1000 W
Pack Weight
19.00
Description

DAB iCON Powered Pressure System

Ideal for medium to large homes. Suitable for high density urban applications

1.0kW, 1.36hp, 240V, max hd 59m, max flow 120L/m, 12 taps. Ports 1” BSPF In, 1” BSPM Out. Controller with fully adjustable cut in pressure 0.5 to 6 bar.

Bianco iPRESS Controller Features

Refer to the iPRESS Controller page for more information

  • Starts and stops the pump automatically when the tap is open or closed. This means the operator does not need to turn off the pump after use.
  • Maintains a constant pressure during operation resulting in a reliable water supply when required
  • Automatically stops the pump in the situation of no flow (due to inlet pump blockage) and will automatically resume normal operation once the blockage is removed
  • Automatically restarts normal operation in the event of power being cut off to the control. This gives the homeowner peace of mind that the unit will continue to operate even if they are away on holidays
  • Controller is able to keep the pump running at flows as low as 0.5L/min to maintain water supply
  • Plug and play leads (IEC type) installed on the controller so that a licensed electrician is not required to replace the controller if required
  • Change between Mode 1 (Change Cut In pressure only) and Mode 2 (Change Cut In and cut out) via a single button push.
  • Real time indication of system pressure displayed so a separate in line pressure gauge is not required
  • Special non return valve to avoid water surging.
Drinking Water Approved
AS/NZS 4020 drinking water approved

AS/NZS 4020 Drinking Water Approved.

Pumps that are AS/NZS 4020 Drinking Water Approved Offer peace-of-mind.

This approval ensures that the pump will not contribute any toxic materials or metals to the liquid being pumped, won’t support the growth of micro-organisms and won’t change the taste or appearance of your water. Read More...

DAB Product Selector

DNA (DAB Navigator Application) lets you search pumps by hydraulic performances, model or article number. You can obtain data sheets, spare parts information, user guides and other technical documentation.

The free registration allows you to save projects and add custom articles to your quotations.
