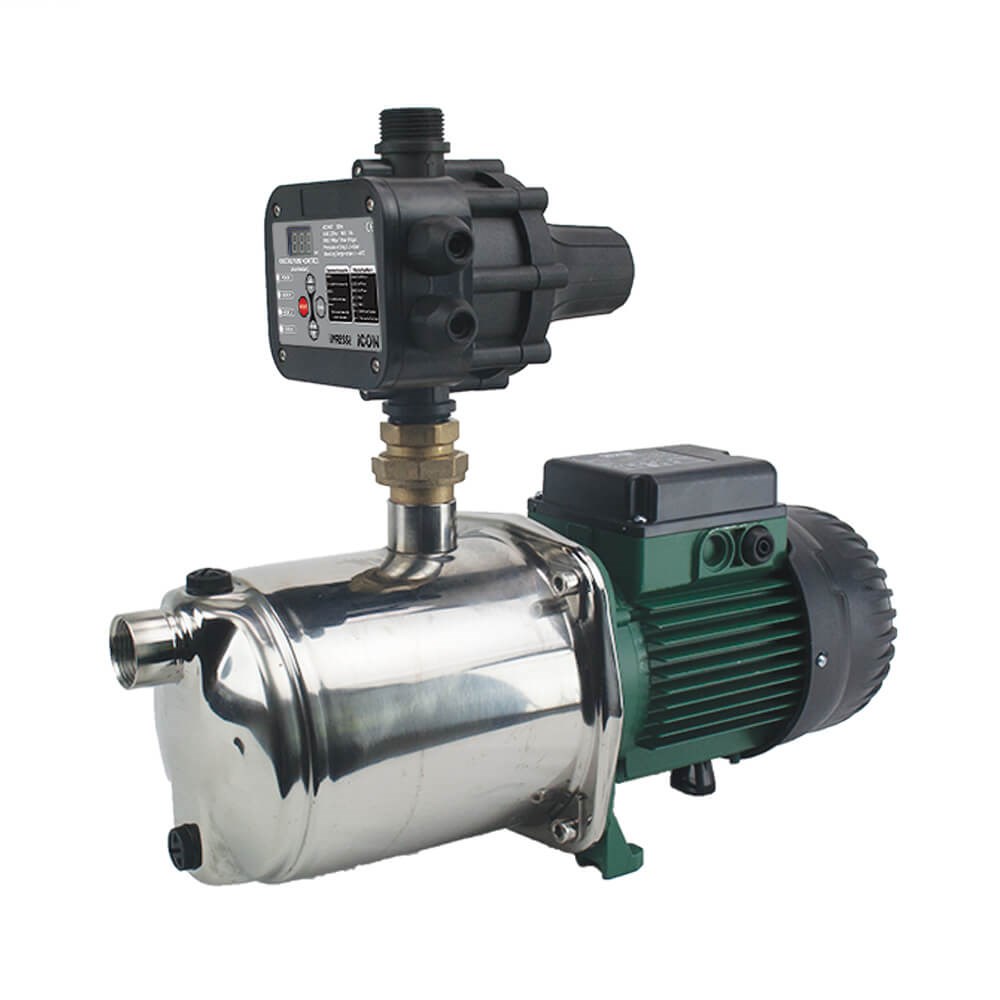

• DAB-EUROINOX30/50MPCI - PUMP SURFACE MOUNT MULTISTAGE WITH AUTO PUMP CONTROL 80L/MIN 42M

DAB-EUROINOX30/50MPCI - PUMP SURFACE MOUNT MULTISTAGE WITH AUTO PUMP CONTROL 80L/MIN 42M

Order Code: 804777

Print
Product Code
DAB-EUROINOX30/50MPCI
RRP: $1860.10 incl. GST
Find Your Nearest Store
Product Documents Find a Service Agent
Technical Specifications
Brand DAB Pumps
Product Type Pressure System
Suitable For Clean Water
Bar 4.22 Bar
Approval Approved For Drinking Water
Flow Range Category a. 0 - 99 L/min
Flow Rate (L/min) 80 L/min
Hp 0.75 Hp
kPa 427 kPa
Kilo Watts 0.55 kW
Head Range Category b. 40 - 59 m
Max Head (m) 42.2 m
Port Size Inlet 1" BSPF inlet
Port Size Outlet 1" BSPM outlet
Powered Electric
Taps 8 Taps
Warranty (months) 24 Months
Volts 240 V
Watts 550 W
Pack Weight (KG):
15.00
Description
Surface Mounted - Horizontal Multistage Pump

Ideal for long suctions and large homes. Suitable for high density urban applications.

0.55kW, 0.75hp, 240V, max hd 42.2m, max flow 80L/m, 8 taps

Ports 1" BSPF In, 1" BSPM Out

Warranty
2 Year DAB Pumps Warranty

Bianco iPRESS Controller Features

Refer to the iPRESS Controller page for more information

  • Starts and stops the pump automatically when the tap is open or closed. This means the operator does not need to turn off the pump after use.
  • Maintains a constant pressure during operation resulting in a reliable water supply when required
  • Automatically stops the pump in the situation of no flow (due to inlet pump blockage) and will automatically resume normal operation once the blockage is removed
  • Automatically restarts normal operation in the event of power being cut off to the control. This gives the homeowner peace of mind that the unit will continue to operate even if they are away on holidays
  • Controller is able to keep the pump running at flows as low as 0.5L/min to maintain water supply
  • Plug and play leads (IEC type) installed on the controller so that a licensed electrician is not required to replace the controller if required
  • Change between Mode 1 (Change Cut In pressure only) and Mode 2 (Change Cut In and cut out) via a single button push.
  • Real time indication of system pressure displayed so a separate in line pressure gauge is not required
  • Special non return valve to avoid water surging.
Drinking Water Approved
AS/NZS 4020 drinking water approved

AS/NZS 4020 Drinking Water Approved.

Pumps that are AS/NZS 4020 Drinking Water Approved Offer peace-of-mind.

This approval ensures that the pump will not contribute any toxic materials or metals to the liquid being pumped, won’t support the growth of micro-organisms and won’t change the taste or appearance of your water. Read More...
Spare Parts
Code
Part Number
Description
702135
DABSR00010762
BOARD ACTIVEEI25/30M-N.7
702263
DABSR00005312
BOLTS ACTIVEEI25/30M-N.7
702163
DABSR00010751
DABS R00005112 BEARING REAR
702175
DABS R00010751
DABS R00005129 - FRONT BEARING
702257
DABSR00005282
DABS R00005282 Mechanical Sealto suit all models EUROINOX
804945
DABS R00005306
DABS R00005306 - O-RING / GASKET
702261
DABSR00005309
DABS R00005309 - Self Priming Flange - EUROINOX all models
702079
DABSR00008871 12.5UF
DABS R00008871 - CAPACITOR 12.5UF
702077
DABSR00004002
FAN ACTIVEEI25/30M-N.7
800614
DABSR00005332
HYDRAULICS EUROINOX30-50-N.5
702084
DABSR00004017
LOAD PLUG ACTIVEEI25/30M-N.7
702176
DABS R00005131
MOTOR ACTIVEEI30/50M-N.8
702081
DABSR00004011
MOTOR COVER ACTIVEEI25/30M-N.7
702259
DABSR00005288
MOTOR SHAFT ACTIVEEI30/50M-N.8
702085
DABSR00004018
PLUG ACTIVEEI25/30M-N.7
702272
DABSR00005344
PUMP BODY ACTIVEEI25/30M-N.7
702083
DABSR00004016
SEAL COVER ACTIVEEI25/30M-N.7
702267
DABSR00005328
STAGE ACTIVEEI30/50M-N.8
DAB Product Selector

DNA (DAB Navigator Application) lets you search pumps by hydraulic performances, model or article number. You can obtain data sheets, spare parts information, user guides and other technical documentation.

The free registration allows you to save projects and add custom articles to your quotations.

dna.dabpumps.com
