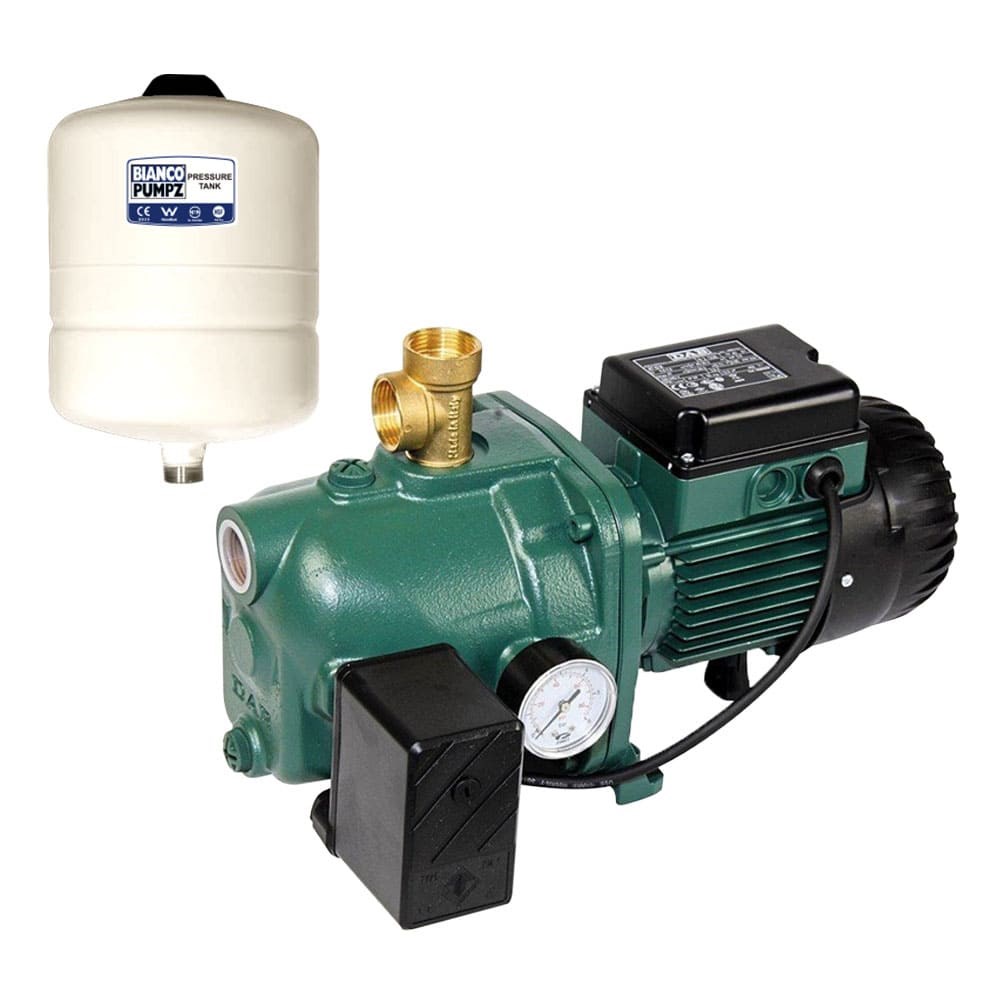

DAB-82MP-8V - Surface Mounted Jet Pump with Pressure Switch 60 L/min 47m 0.60Kw 240V + 8L Tank

Order Code: 701447

Print
Product Code
DAB-82MP-8V
RRP: $1012.00 incl. GST
Find Your Nearest Store
Product Documents Find a Service Agent
Technical Specifications
Brand DAB Pumps
Product Type Pressure System
Suitable For Clean Water
Bar 4.7 Bar
Approval Approved For Drinking Water
Flow Range Category a. 0 - 99 L/min
Flow Rate (L/min) 60 L/min
Hp 0.8 Hp
kPa 476 kPa
Kilo Watts 0.6 kW
Head Range Category b. 40 - 59 m
Max Head (m) 47 m
Port Size Inlet 1" BSPF inlet
Port Size Outlet 1" BSPF outlet
Powered Electric
Taps 6 Taps
Warranty (months) 24 Months
Volts 240 V
Watts 600 W
Pack Weight (KG):
0.00
Description
Self Priming Cast Iron Jet Pressure Pumps

0.60kW, 0.8hp, 240V, max hd 47m, max flow 60L/m, 6 taps Ports 1” BSPF In, 1” BSPF Out. Includes NRV.



Pressure Tank

Bianco Tanks are highly constructed pressure tanks suitable for most domestic and commercial applications.

  • Nominal volume: 8L
  • Nominal Draw-off: 3L
  • Continuous max. temp 90°C
  • Continuous max. pressure: 10 Bar (145PSI)
  • Pre-charge: 4 Bar (58PSI)
  • Diameter: 203 mm
  • Height: 304mm
  • Net Weight: 1.9Kg
  • System Connection: GI
  • Colour: Almond
