DAB-62MP-8V - PUMP SURFACE MOUNTED JET WITH PRESSURE SWITCH 45L/MIN 42M 0.44KW 240V+ 8L TANK

Order Code: 701435

Print
Product Code
DAB-62MP-8V
RRP: $946.00 incl. GST
Find Your Nearest Store
Product Documents Find a Service Agent
Technical Specifications
Brand DAB Pumps
Suitable For Clean Water
Bar 4.2 Bar
Approval Approved For Drinking Water
Flow Range Category a. 0 - 99 L/min
Flow Rate (L/min) 45 L/min
Hp 0.6 Hp
Kilo Watts 0.44 kW
Head Range Category b. 40 - 59 m
Max Head (m) 42 m
Port Size Inlet 1" BSPF inlet
Port Size Outlet 1" BSPM outlet
Powered Electric
Taps 4 Taps
Warranty (months) 24 Months
Volts 240 V
Watts 440 W
Pack Weight (KG):
0.00
Description

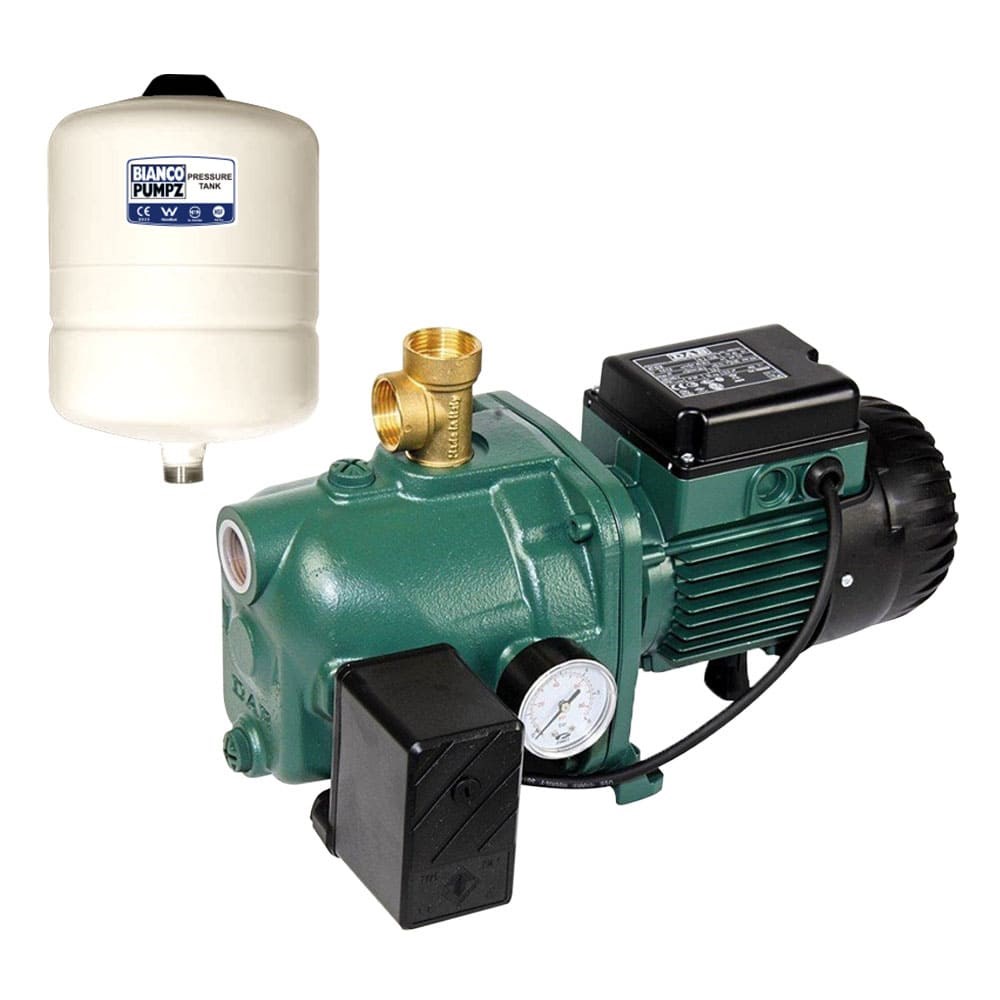

Self Priming Cast Iron Jet Pressure Pumps

0.44kW, 0.6hp, 240V, max hd 42m, max flow 45L/m, 4 taps Ports 1” BSPF In, 1” BSPF Out. Includes NRV.

Includes a 8L Pressure Tank

Bianco Tanks are highly constructed pressure tanks suitable for most domestic and commercial applications.

  • Nominal volume: 8L
  • Nominal Draw-off: 3L
  • Continuous max. temp 90°C
  • Continuous max. pressure: 10 Bar (145PSI)
  • Pre-charge: 4 Bar (58PSI)
  • Diameter: 203 mm
  • Height: 304mm
  • Net Weight: 1.9Kg
  • System Connection: GI
  • Colour: Almond
Drinking Water Approved
AS/NZS 4020 drinking water approved

AS/NZS 4020 Drinking Water Approved.

Pumps that are AS/NZS 4020 Drinking Water Approved Offer peace-of-mind.

This approval ensures that the pump will not contribute any toxic materials or metals to the liquid being pumped, won’t support the growth of micro-organisms and won’t change the taste or appearance of your water. Read More...
WaterMark Approved

WATERMARK APPROVAL - WMKA00105 to AS/NZS3499

The WaterMark Certification Scheme is a mandatory certification scheme for plumbing and drainage products to ensure that plumbing and drainage materials and products are fit for purpose and appropriately authorised for use in plumbing installations.

The Plumbing Code of Australia requires certain plumbing and drainage materials and products to be certified and authorised for use in a plumbing or drainage installation. These materials and products are to be certified through the WaterMark Certification Scheme and listed on the WaterMark Product Database.

WaterMark Approval Logo

In order to achieve Watermark Certification, the subject material or product must:

  • be tested by a recognised testing laboratory;
  • comply with an approved specification (either a relevant existing standard or an approved WaterMark Technical Specification);
  • be manufactured in accordance with an approved Quality Assurance Program; and
  • carry a warranty.

Materials and products complying fully with the applicable requirements of the WaterMark Certification Scheme are then eligible to be certified by a WaterMark Conformity Assessment Body (WMCAB) and listed on the WaterMark Product Database.

Certified materials and products are identifiable by the WaterMark trademark, which must be displayed on the material or product upon the granting of a WaterMark Certificate of Conformity.

Read more about WaterMark Approvals
