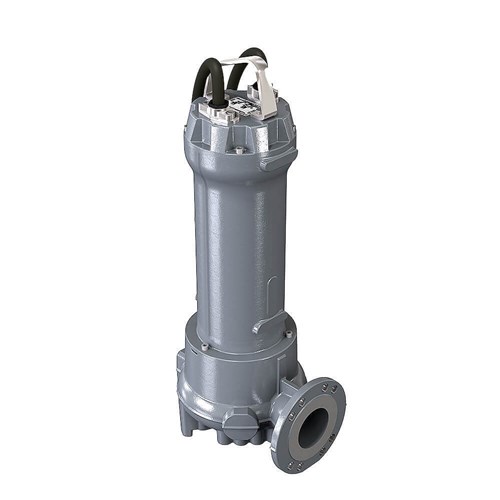

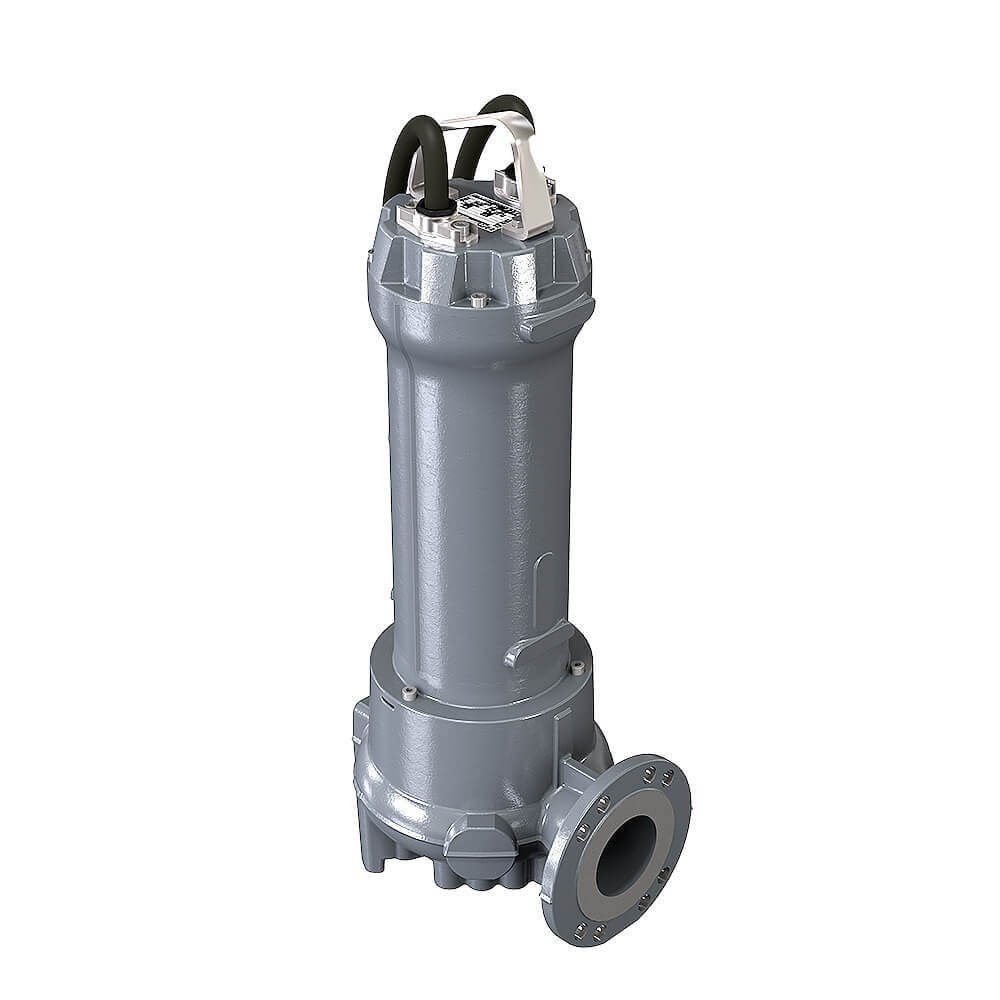

ZEN-DGG250/4/80HE0ETEX - Zenit Grey Vortex Pump ATEX 1.8kW

Code: 807397

Print
Product Code
ZEN DGG250/4/80HE0ETEX
RRP: $5775.00 incl. GST
Find Your Nearest Store
Technical Specifications
Brand Zenit Pumps
Product Type Submersible Pump
Suitable For Water
Approval ATEX certified Ex d.
Max Flow (L/sec) 25.4
Kilo Watts 1.8 Kw
Max Head (m) 10.3
Port Size Outlet DN 80
Series Grey
Warranty (months) 12
Volts 415 V
Pack Weight (KG):
68.00
Description

1.8kW,2.4hp, 415V without float switch, max hd 10.3m, max flow 25.4 L/s, Outlet DN 80

ATEX certified Ex d.

Requires ZENS9024.007 Ring Stand for free standing operation
3 phase pumps require contactor and overload.

Zenit DGG Grey Series

The Zenit Grey series is a new solution for pumping wastewater in civil, residential and industrial applications.

Zenit Grey pumps feature cleverly redesigned hydraulics and motors to guarantee high performance, low consumption and outstanding versatility. These all translate to greater product efficiency, impeccable reliability and lower operating costs.

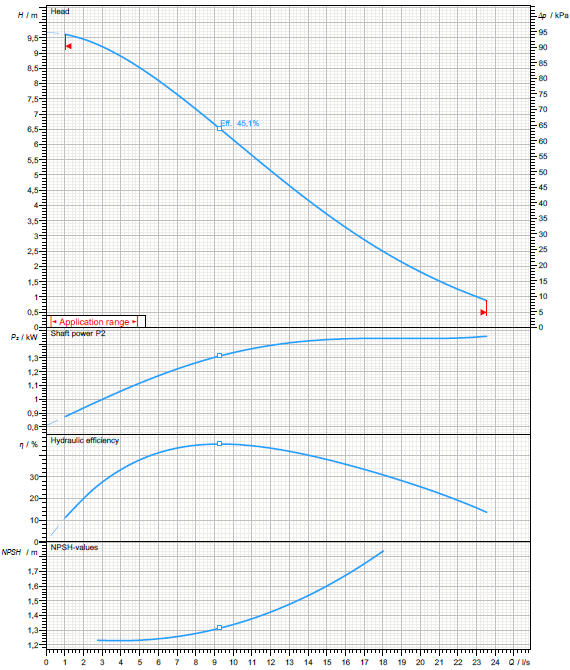

Overview of Operating Ranges
DGG Suitable for

Storm water, unstrained soiled biological wastewaters and sewage and for civil lifting applications. It is thus ideal for wastewater treatment plants, sewer systems, livestock farms, industry and agriculture.

Suitable for use in underground carparks.

ATEX certified Ex d.



Hydraulics
  • Set back vortex impeller


Efficient & Reliable

The Zenit Grey series offers reduced purchasing, installation and maintenance times and costs thanks to a wide choice of models and the use of immediately available standard components.

Exceptionally reliable, the Grey series needs far fewer repairs, meaning reduced costs. Running costs will be lower and there will be fewer system stoppages, allowing more effective maintenance scheduling.



Zenit Grey Product Range
Zenit Grey Brochure


Construction materials
Motor casingCast iron GJL-250
ImpellerCast iron GJL-250
Mechanical sealsTwo in silicon carbide (2SiC)
Nuts and boltsStainless steel - class A2-70
Standard gasketsNBR
Drive shaftAISI 431 Stainless Steel
PaintingBicomponent epoxy paint with high resistance to corrosion
Operating specifications
Max operating temperature40°C
pH of liquid6 ÷ 14
Liquid viscosity1 mm2/s
Max submergence20 m
Liquid density 1 kg/dm3
Max acoustic <70 dB
Max. starts/hour 20 (<10 kW)
15 (>10 kW)


Features
1. HANDLE
Rugged stainless steel lifting and carrying handle.
2. CABLE GLAND
The universal GAS thread of the cable gland is able to take a sheathing pipe to protect the power cable from mechanical or chemical damage due to urbulence or the aggressive nature of the liquid.
3. PRESSURISED TESTING
Every model undergoes pressurised testing to guarantee perfect assembly and operation of the gaskets, cable gland and mechanical seals.
4. DRIVE SHAFT
Drive shaft in AISI 431 stainless steel. Connection to impeller via tapered coupling.
5. MECHANICAL SEALS + V-RING
Two mechanical seals in silicon carbide (SiC-SiC) enclosed in an inspectable oil chamber. This prevents all contact between the mechanical seals and any solids or filaments in the wastewater.
6. OIL CHAMBER
Large, inspectable oil chamber to guarantee longer mechanical seal lifetime. Includes a leakage detection sensor.
7. ANTI-CLOGGING SYSTEM
The special conformation of the hydraulic part ensures the expulsion of solids and prevents fouling of the impeller.


ATEX certified Ex d.
ATEX

ATEX is the name commonly given to the two European Directives for controlling explosive atmospheres:
1) Directive 99/92/EC (also known as 'ATEX 137' or the 'ATEX Workplace Directive') on minimum requirements for improving the health and safety protection of workers potentially at risk from explosive atmospheres.

Applicable for Zone 1 hazardous areas.

Spare Parts
Code
Part Number
Description
711360
ZEN-BEARING 6203ZZ
