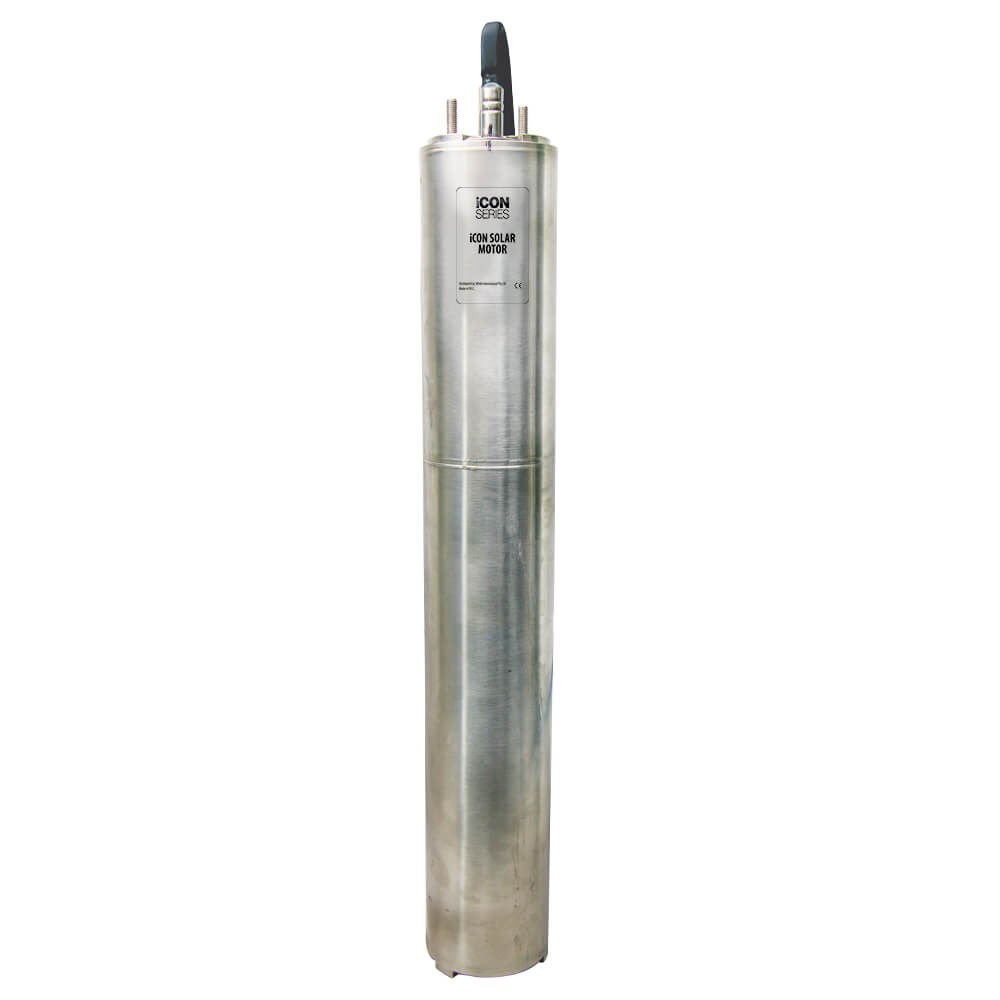

BIA-M110SOL - SOLAR MOTOR 0.37- 1.1KW

Code: 805891

Print
Product Code
BIA M110SOL
RRP: $3300.00 incl. GST
Find Your Nearest Store
Technical Specifications
Brand Bianco iCON
Type Solar Motor
Kilo Watts 1.1 kW
Pack Weight (KG):
15.00
Features

Innovative design allows the motor to be powered by both AC and DC power sources.

The motor has a maximum power output (P2) of 1100 W and is suitable for selected DAB pumps only. The speed range of the motor is 1800 rpm to 3000 rpm depending on the power input and load.

The motor uses rare earth permanent magnets, and has a built-in electronic unit comprising a frequency converter and motor controller. Vector control and MPPT are used to select the best operating point for the pump, based on the energy available from the input source.

The motor can be supplied with either AC or DC voltage. 55-380VMPP (440VOC) DC, 1ph 90-280 VAC. Maximum amps 10A, AC, 12A DC.

MATERIALS
No. Part Materials
1 UPPER BEARING HOUSING STAINLESS STEEL AISI 304 X5CrNi1810 - UNI 6900/71
2 UPPER BEARING SILICON CARBIDE
3 PERMANENT MAGNET ROTOR
4 STATOR
5 MOTOR HOUSING STAINLESS STEEL AISI 304 X5CrNi1810 - UNI 6900/71
6 THRUST BEARING GRAPHITE
7 LOWER BEARING SILICON CARBIDE
8 LOWER BEARING HOUSING STAINLESS STEEL AISI 304 X5CrNi1810 - UNI 6900/71
9 CONTROL MODULE
10 CONTROL MODULE STAINLESS STEEL AISI 304 X5CrNi1810 - UNI 6900/71
11 HEAT CONDUCTOR ALUMINIUM
12 POWER FILTER COIL
13 BASE STAINLESS STEEL AISI 304 X5CrNi1810 - UNI 6900/71
