TRI-TWX7CS001 CONTRACTOR SAW MODULE FOR TWX7 WORKCENTRE

Code: 804686

Print
Product Code
TRI-TWX7CS001
RRP: $690.00

Where to Buy

Find Your Nearest Store Buy Online
Technical Specifications
Product Type TWX7 Module
Brand Triton
Suitable For TRI-TWX7LB
RPM 4500 rpm
Length 660 mm
Taps Work Centre
Volts 220 - 240 V
Warranty (months) Lifetime
Watts 1800 W
Width 410 mm
Blade Diameter 254mm
Blade Kerf 2.6mm
Bore Diameter 30mm
Pack Weight
15.00
Description

At the heart of every workshop is a table saw. This has always been the starting point for the Triton Workcentre concept.

The contractor saw module brings a level of advanced precision with increased safety in a fast switch-out module for the TWX7 Workcentre.

This ‘no compromise’ contractor saw module provides a powerful and versatile table saw function for the Triton WX7 Workcentre.

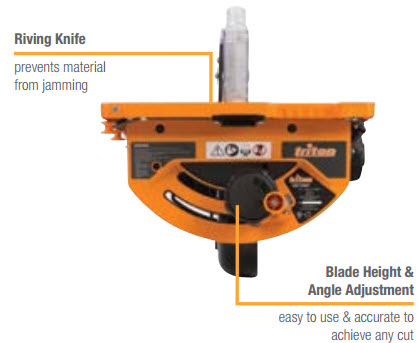

With a cast aluminium table and a highly accurate duel locking point, fence precision cuts can be assured. The blade tilts to 45°, so bevel cuts can be made safely and easily, even with the largest sheet materials.

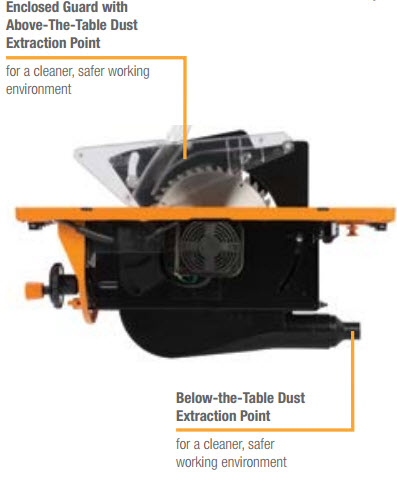

Enclosed guarding above and below the table and an effective anti-kickback mechanism ensures operator safety and aids efficient dust extraction.

Technical Specifications
Power1800W
No Load Speed4500rpm
Blade Diameter254mm / 10"
Bore Diameter30mm / 13/16"
Blade Teeth40 TCT
Bevel Range0° - 45°
Max Angle of Cut45° - 59.5mm / 45° - 2-¼"
90° - 86mm / 90° - 3-½"
Max Rip Cut Capacity775mm / 30½"
Module Size660 x 410mm
Table with Side Extension+600mm
Table with Outfeed Extension +670mm
Dust Extraction FittingHigh Pressure: 31.75mm / 1¼"
Low Pressure: 62.5mm / 2½"
Max Workpiece Size L x W851x775mm
Dust Extraction Port Size32.6mm

Product Brochure


Precision has been at the very heart of Triton’s philosophy since 1976, when the first Workcentre was produced. Born in Australia, Triton tools continue to be built with this philosophy at the forefront of every project. From award-winning routers and laser-guided circular saws, to the industry-renowned Superjaws and the new innovative TWX7 Workcentre, you can rely on Triton for tools that provide an accurate, quality finish every time.

Download Brochure
