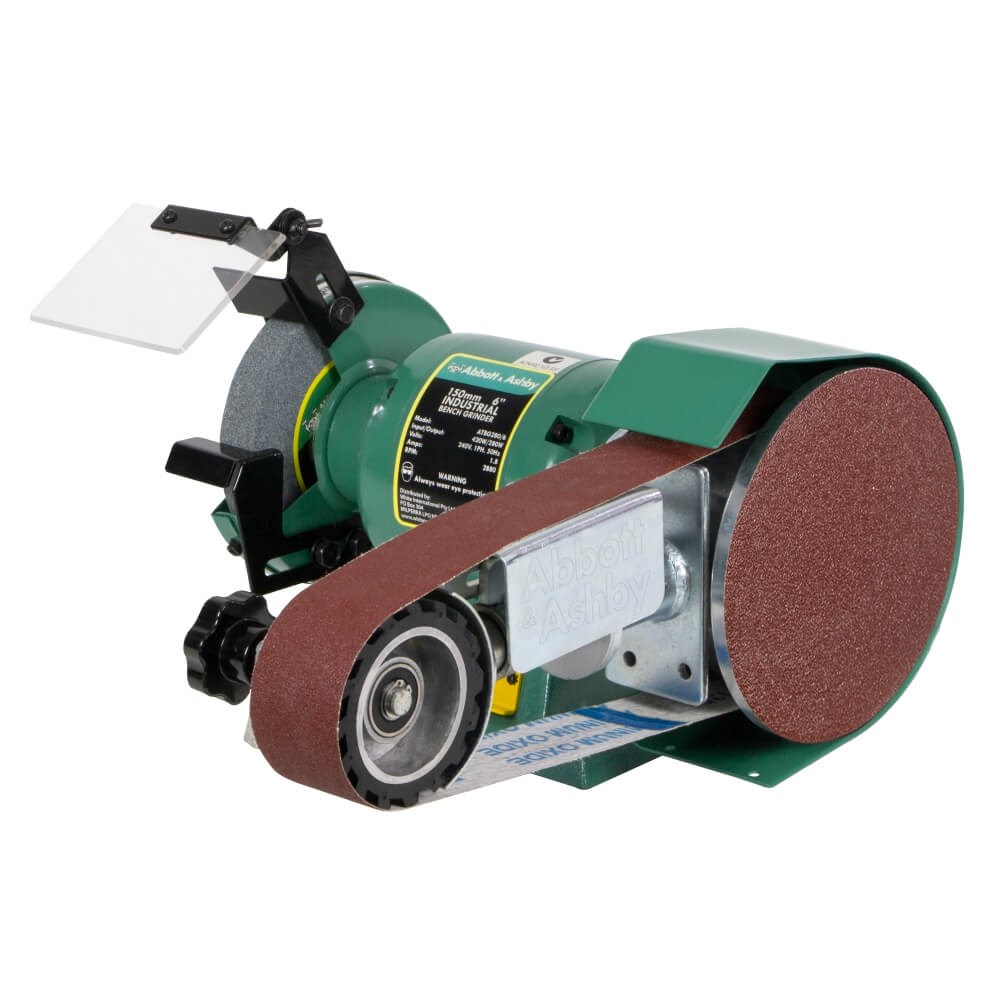

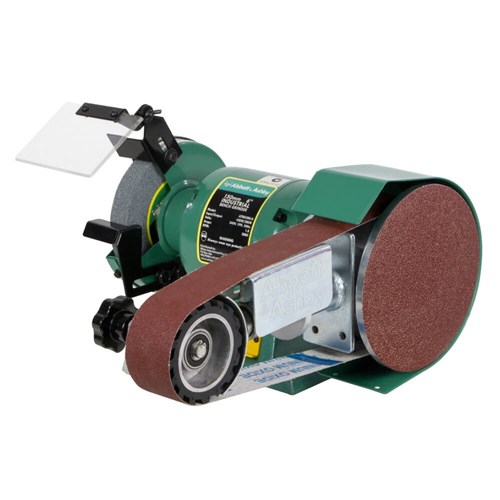

AA362W6 - 6" Industrial Grinder with Linishing Attachment, 915 x 50mm

Code: 808439

Print
Product Code
AA362W6
RRP: $449.00

Where to Buy

Find Your Nearest Store
Technical Specifications
Brand Abbott & Ashby
Product Type Industrial Range
Type Machine
Pack Weight (KG):
15.00
Description

Features & Benefits:

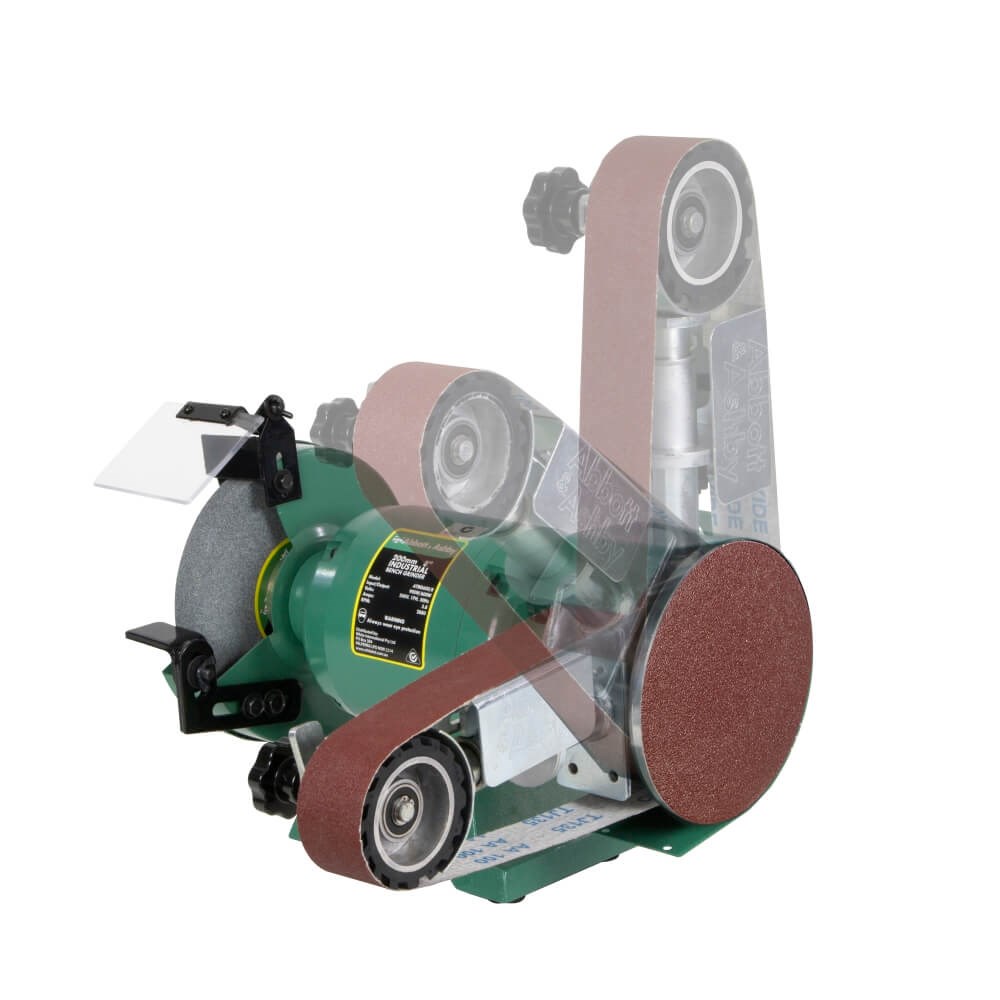

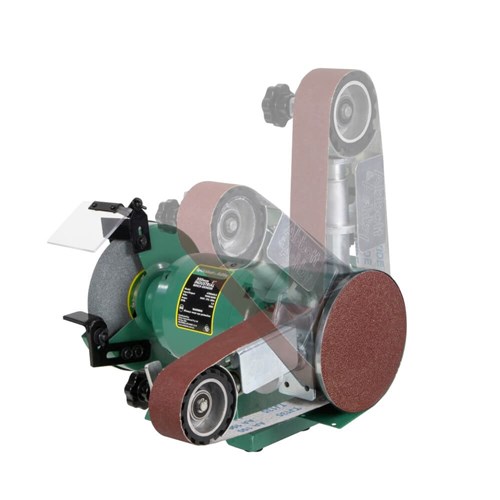

  • Patent pending design allows for fast changes to the working angle without disassembly in 6° increments.
  • Top platen can be used for flat surface grinding and can be moved out of the way for convenient free strapping
  • Easy belt tracking adjustment knob and lock
  • Fast belt changes with patent pending self-locking push in push out arm
  • Linishing Attachment fully assembled out of the box
Technical Specs:
  • Linishing Side – on right
    • 915 x 50mm (36 x 2”) belt – 240 Grit
    • 178mm (7”) diameter disc – 120 Grit
    • 89mm (3.1/2”) contact wheel
  • Grinding Side – on left
    • 150mm/6” x 25mm wide wheel
    • 60 Grit Wheel
Downloads
Operation and Installation Manuals
Download Operation & Installation Manuals v1.0
Spare Parts
Code
Part Number
Description
