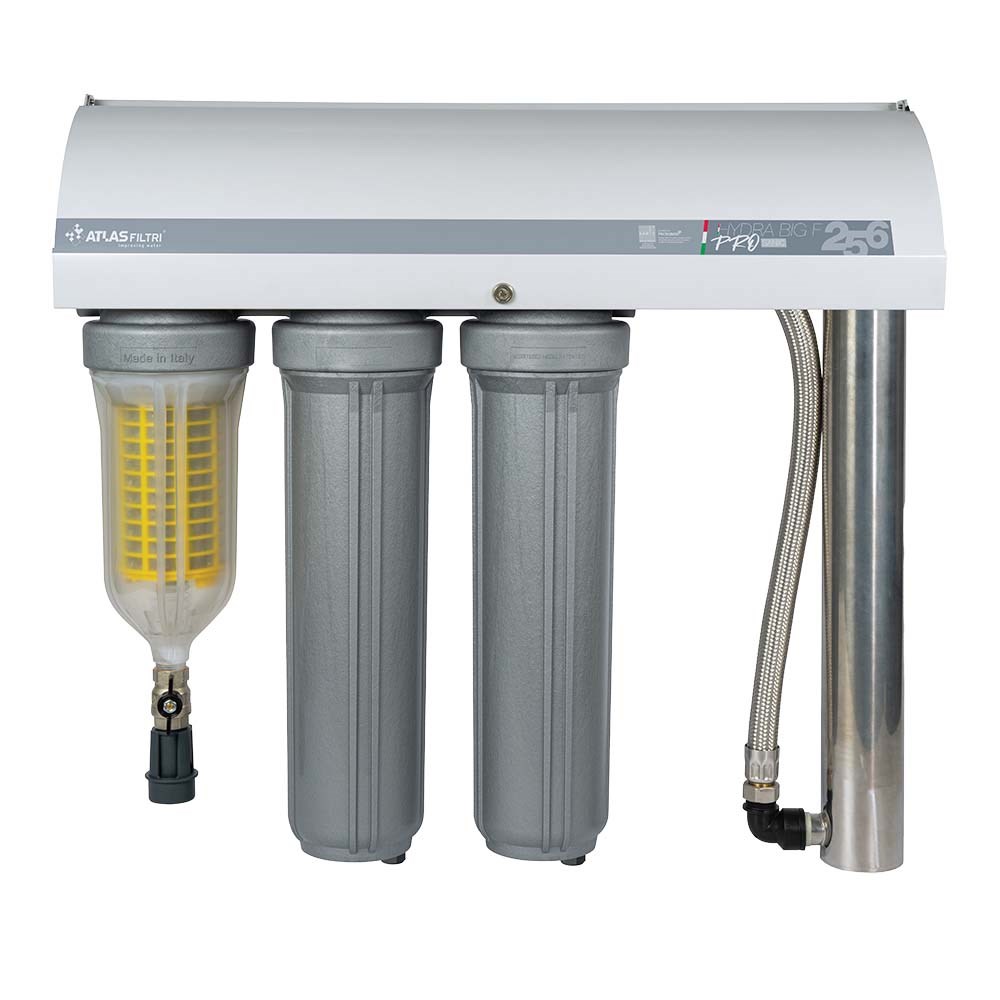

Atlas Filtri HYDRA BIG F Pro 256 SANIC Series 20" Big UV Filtration System with 25 and 1 Micron Prefilters

Order Code: 813101

Print
Product Code
ATF-BIGFPRO256HYDRA-SANIC
RRP: $3520.00 incl. GST
Find Your Nearest Store
Technical Specifications
Brand Atlas Filtri
Product Type UV Units
Flow Rate (L/min) 54
Material PET with Antimicrobial Technology
Nominal Micron Rating 1
Inlet/Outlet 1"
Max Pressure (bar) 8.3
Min Temp (degrees celsius) 4
Max Temp (degrees celsius) 45
Application Whole House Supply
Filter 20" Big
Pack Weight (KG):
35.00
Description

The Hydra Big F Pro Sanic Series UV kits are all Italian Made Plug and Play UV units.

The included Italian SANIC pre-filters reduce sediment to prevent it from sheltering bugs from the UV light. The Italian UV chamber eliminates harmful pathogens, including bacteria, protozoa (parasites) and some viruses and features an IP54 rated controller.

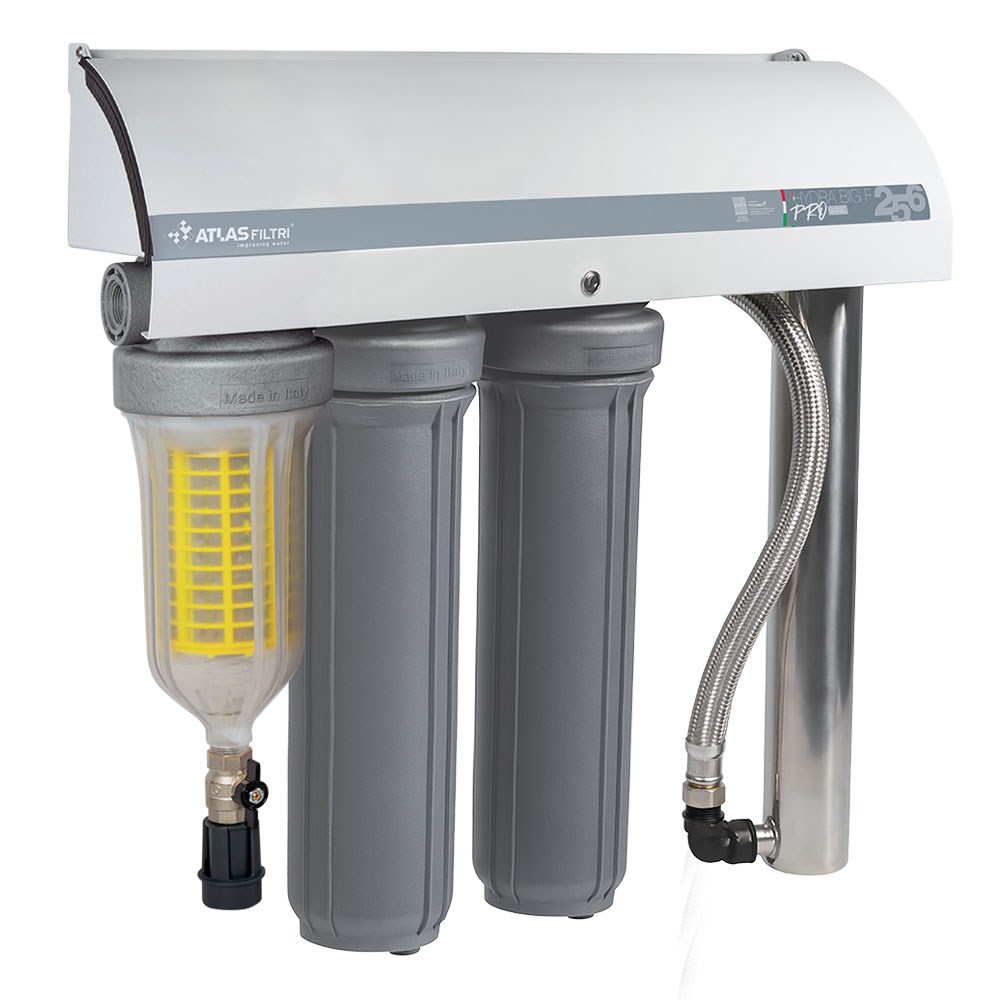

The units come pre-plumbed, with a single inlet/outlet, mounted on a single bracket under a lockable cover which can protect the unit from weather.

When do I need UV?

If you are on a rural supply (e.g. rain water, bore water, etc) that has no protection, installing a UV is an insurance policy. Unfortunately, we cannot see harmful bugs like bacteria, parasites or viruses and only find out they have been present if we become unwell. It is not practical to test our water every day, so installing a Big F Pro SANIC UV gives you the peace of mind that you are protecting the health of yourself, your family and visitors.

Of course, if you have had your water tested and found harmful bacteria present, then you should boil your water until you have a Big F Pro SANIC UV installed to protect you from any future contamination.

Includes:
  • Atlas Filtri ATL-HYDRABIGRAH90MCR Hydra RAH Stainless Mesh 90 Micron Cartridge
  • AAtlas Filtri ATL-CPP20BIGSANICSX25MCR 20" Big 25 Micron CPP SANIC SeriesPoly Melt-Blown Antimicrobial Filter
  • Atlas Filtri ATL-CPP20BIGSANICSX1MCR 20" Big 1 Micron CPP SANIC Series Poly Melt-Blown Antimicrobial Filter
Features:
  • Eco-Friendly, Chemical-Free Disinfection
  • Italian Made
  • IP54 Rated Control Panel
  • Digital Monitor Display
  • Lamp Life Counter
  • Acoustic Alarm for Lamp Replacement
  • Lockable, Weather-Resistant Cover
  • High Max Pressure Rating of 8.3bar
  • Reversible Mounting: Choose your flow direction
  • Hydra BIG 90 Micron Self Cleaning Cartridge
Benefits:
  • Safe, chemical free, disinfected Water which protects the health of you and your family from harmful microorganisms.
  • Italian made means Quality.
  • The lockable weather resistant cover protects your unit from children, vandalism and can be installed where you need it most.
  • The reversible mounting means you can have a tidy install every time, no need to run extra pipe.
  • The digital display and audible alarm keep you safe by letting you know if your lamp is working and when it needs to be changed.
  • The pre-plumbed configuration means a quick, easy, tidy looking installation and you can be sure that you have the correct size filters in relation to the UV.
Specifications
Power Consumption 73W
Power Cable Length 2m
Inlet/Outlet 1" BSPF Inlet / 1" BSPM Outlet
UV Reactor Material 304 Stainless Steel
UV Reactor/Controller Protection Glass IP54
Dimensions (H x W x D) 870 x 922 x 205mm
Shipping Weight 22kg


Features

Incoming Water Quality Parameters
The water which enters the unit must meet the specifications below for the unit to be effective and for the warranty to apply. If the raw water does not meet these parameters, additional pre-treatment may be required.
Incoming Water Quality Parameter
UV Transmittance >95%
Total Hardness <120mg/L
Iron <0.3mg/L
Manganese <0.05mg/L
Hydrogen Sulphide <0.3mg/L
Operating Conditions
Power Supply AC 110-240V, 50/60Hz
Max Working Pressure 8.3bar
Working Temperature 4-45°C (Protect from Freezing)
UV Dose 30-40mJ/cm²
Maintenance
Service Intervals
Filter Cartridges 3-12 Monthly or when pressure loss reaches 1bar (15PSI)
UV Lamp Annually (9,000 hours)
UV Quartz Sleeve Cleaning is advised at least quarterly. This may vary depending on your water quality – seek the advice of your supplier for your situation
Quartz Sleeve O-Ring Annually (unless damaged earlier)
