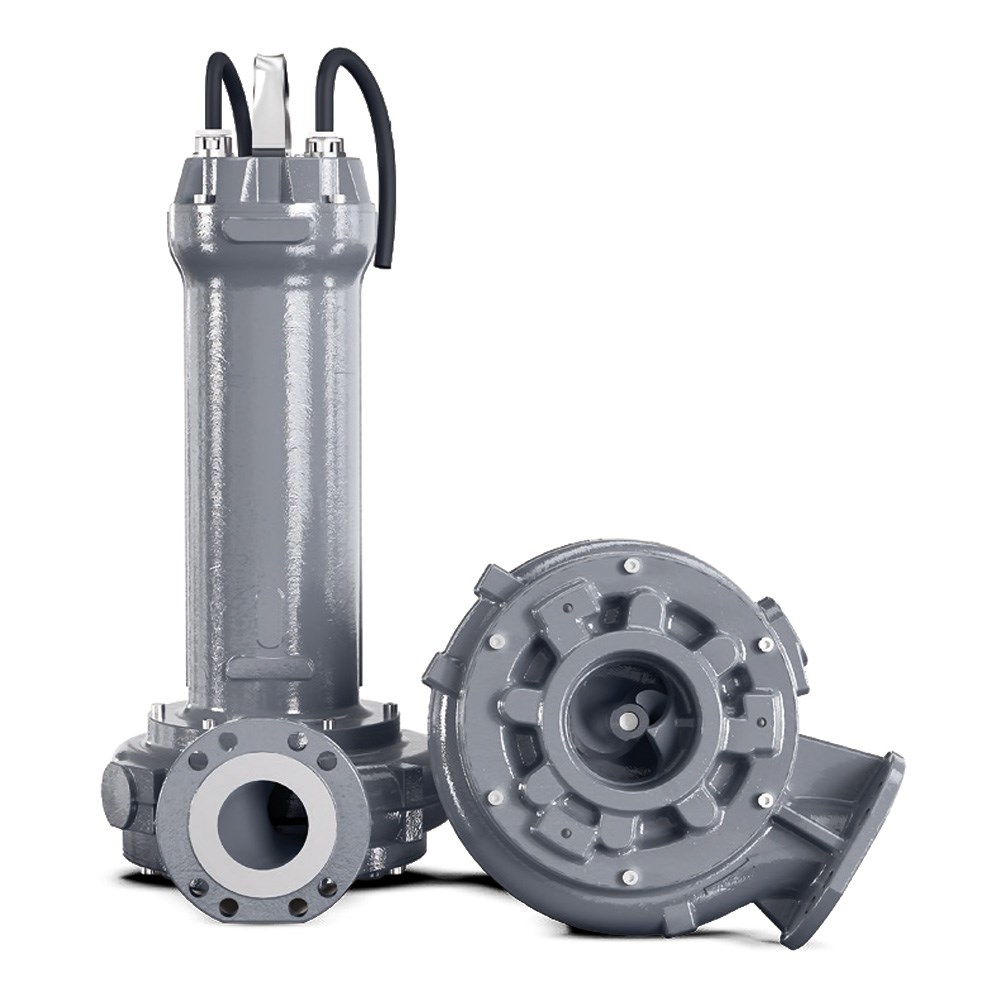

Zenit Grey CTG submersible pumps are intended for heavy use with highly soiled sewage and wastewater, containing solid and fibrous waste. The pump is equipped with a hydraulic unit with an innovative cutting system, designed to cut solid waste and smash filamentary waste contained in wastewater.
The CTG Series combines the best of Zenit top hydraulics: the high flow rates values of the Open Channel together with the solids’ management capacity allowed by the Vortex, with the addition of the innovative Zenit cutting system. Moreover, thanks to the effective anti-clogging system, the CTG’s set a benchmark for the Grey series to handle loaded wastewater in any environment, without compromising performance and operational reliability.
Features:
- Cast iron body EN-GJL250
- Impeller, suction flange and blade in EN-GJS600
- Thermal protections integrated into the stator
- Moisture detection probe fitted to mechnaical seal oil chamber
- AISI 431 crankshaft
- Two-component epoxy painting 200μm
- Two silicon carbide mechanical seals [SiC] inside the oil chamber
- Wide free-passage
Applications:
- Wastewater and sewage treatment
- Food, agriculture, livestock and abattoir industries
- Paper and textile industries
- Municipal and emergency applications
| Operating Conditions |
| Free passage |
36mm |
| Insulation |
Class H (180º C) |
| Motor |
4 pole, 3-phase |
|
| Electrical Data |
| Voltage |
415 V |
| Protection Level |
IP68 |
| Ports |
|
| Cable Length |
10m |
|
