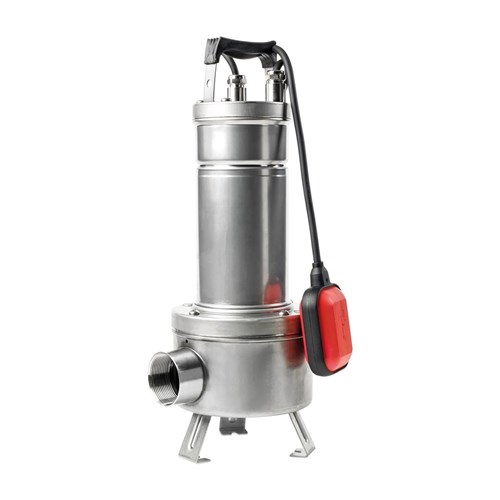

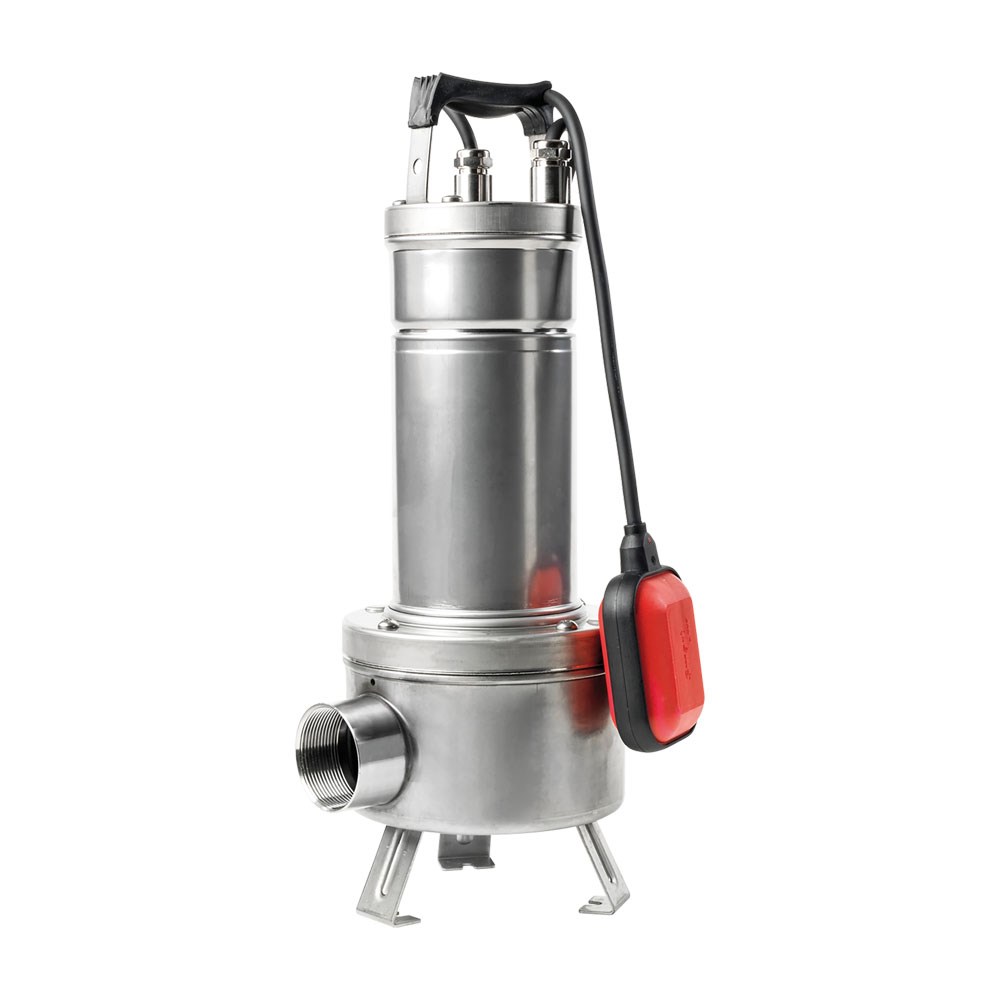

Feka VS by DAB are submersible pumps made entirely in stainless steel, ideal for lifting sewage water in residential building service and commercial building service. Microcast stainless steel vortex impeller in back-flowing position to prevents pump clogging, it can handle solid matter up to 50mm.
High reliability guaranteed by the double mechanical seal in silicon carbide in oil bath. Feka VS is suitable for fixed or mobile installations and is available in the automatic version with integrated float switch or in the manual version without the float.
Continuous duty asynchronous submersible motor, rotor mounted on oversized ball bearings. Thermal protection incorporated in all single-phase versions. 10 meter cable included. All versions have a handle.
Features:
- Handle with insulating rubber cover
- AISI 316 stainless steel drive shaft
- Stainless steel submersible pump with microcast 304 stainless steel vortex impeller
- Double mechanical seal with intermediate oil chamber (atoxic oil), in carbon/alumina on the motor side and silicon carbide/silicon carbide on the pump side.
- Extenal float cable
Applications:
- Wastewater city tanks
- Draining underground streets and structures
- Agriculture complexes
- Disposal of wastewater and for protection against flooding.
| Operating Conditions |
| Type of installation |
Wet pump only |
| Free passage |
50mm |
| Liquid Temperature |
0º to +35º C |
|
|
| Electrical Data |
| Voltage |
240 V |
| Protection Level |
IP68 |
| Ports |
|
| Cable |
10m H05RN-F |
|
