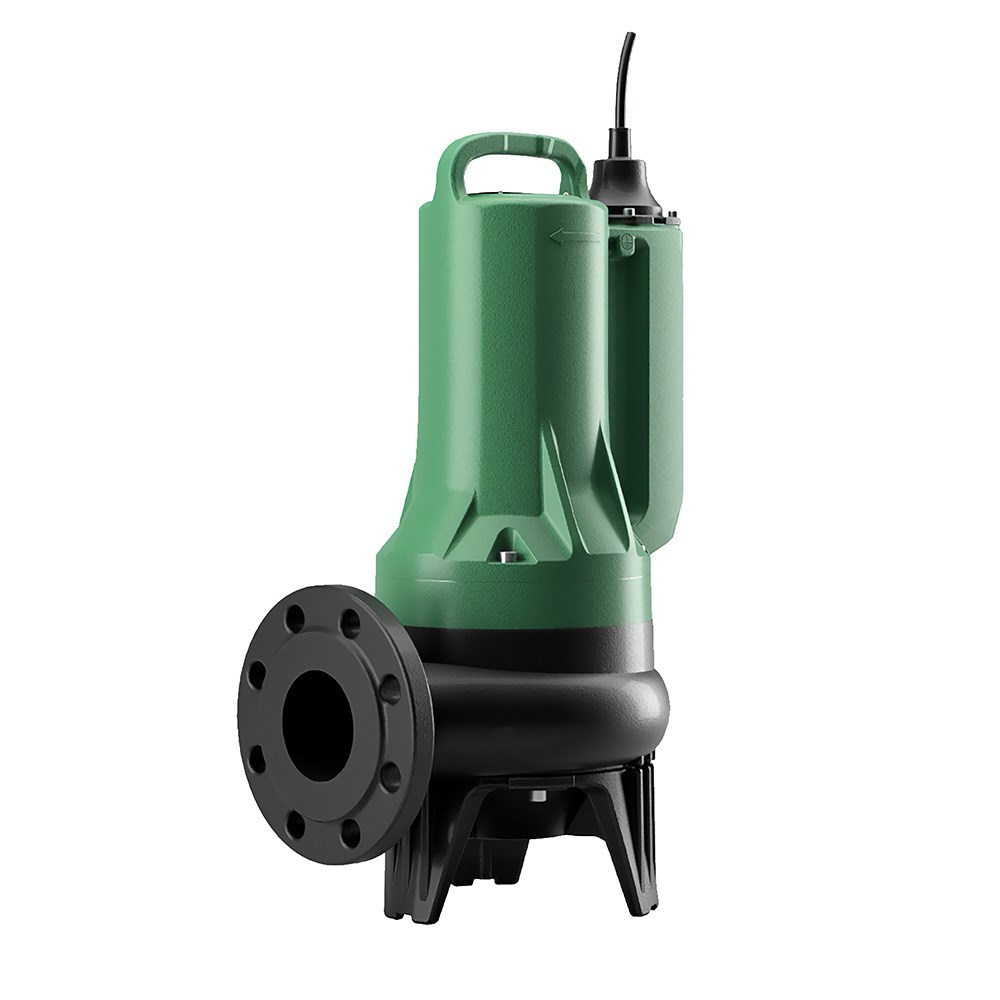

The DAB Feka FXS is a submersible pump designed for lifting and transferring wastewater from drains in residential, commercial, and agricultural. Certified to standard EN 12050-1 for wastewater. Features a non-clog screw impeller for impressive hydraulic efficiency.
Features:
- Cast iron screw impeller with non-clog system, cast iron pump casing and AISI 304 stainless steel motor shaft
- Double SiC-SiC/C-Al mechanical seal running in an oil chamber not in contact with the fluid being pumped
- DN 80 flanged outlet
- 50mm free passage
- Dry run for a maximum of 10 minutes
- Three-phase asynchronous motor with rotor mounted on long-life lubricated watertight bearings. S1 continuous duty
with motor fully submerged.
Applications:
- Wastewater city tanks
- Draining underground streets and structures
- Agriculture complexes
- Disposal of wastewater and for protection against flooding.
| Operating Conditions |
| Type of installation |
Wet pump only |
| Free passage |
50mm |
| Liquid Temperature |
0º to +50º C |
| Maximum Ambient Temperature |
50º C |
| Max Head |
25m |
| Max Flow |
1400 L/min |
|
| Electrical Data |
| Voltage |
415 V |
| Protection Level |
IP 68 |
| Ports |
|
| Cable |
10m 07RN8-F cable
|
| Power (out) |
3.0kW |
|
| Construction |
| Materials |
- Cast Iron body, impeller and motor
- SiC/Carbon mechanical seal
- Stainless Steel AISI 304 motor shaft
|
| Dimensions |
579mm (h), 341mm (w) |
| Weight |
57kg |
|
