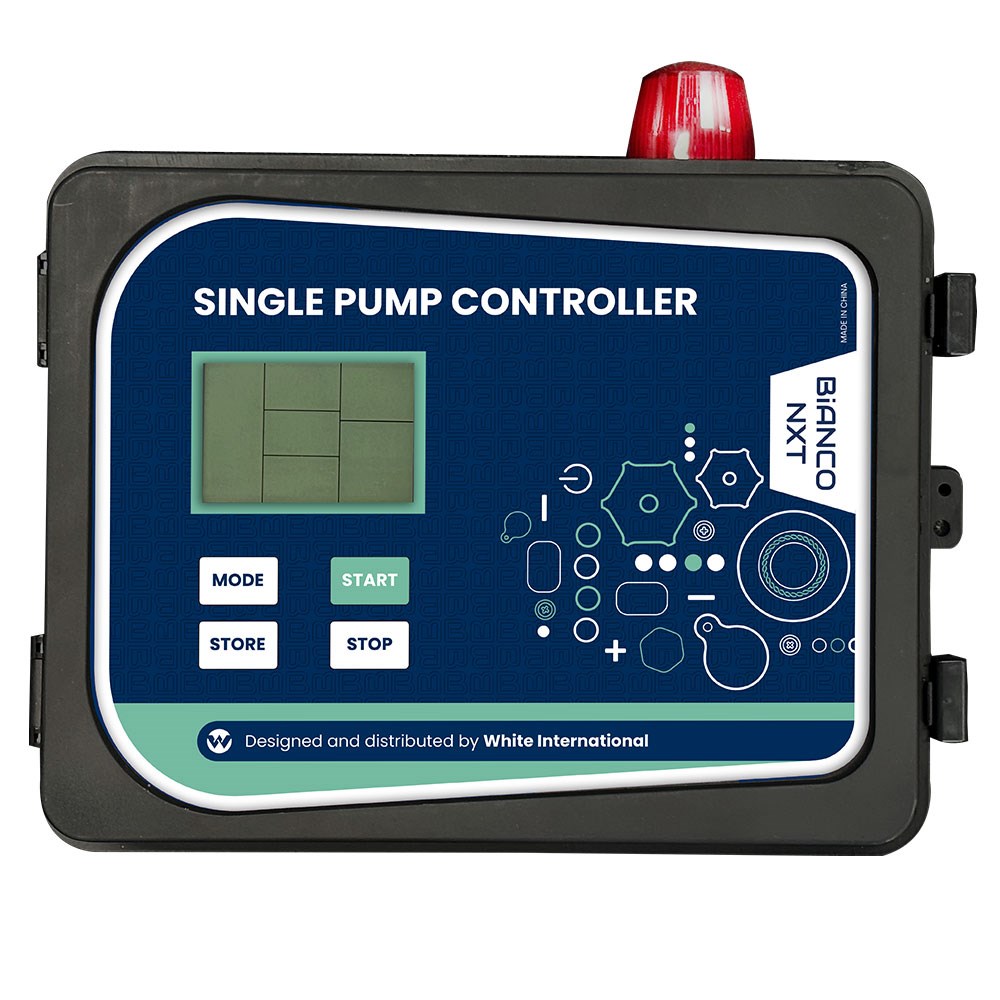

BIA-NXT-SPC1-22 - nXt Single Pump Control Panel 240V 0.37 - 2.2kW

Order Code: 811195

Print
Product Code
BIA-NXT-SPC1-22 Â
RRP: $1122.00 incl. GST
Find Your Nearest Store
Technical Specifications
Brand Bianco iCON
Pack Weight (KG):
4.00
Description

The BiANCO NXT-SPC (Single Pump Controller) is a module intended to control and protect an individual single phase pump up to a nominal 2.2 kW The user can select a control logic sequence to match their application and enjoy the benefits of superior control and protection for the pump.

There are 3 primary control logic modes
  • ‘Drainage’ where control is concentrated at the source
  • ‘Boosting’, which references pressure switching for control
  • ‘Transfer,’ which is a mix of source and destination control

NXT-SPC has 2 x passive dry contacts and is equipped with a RS485 modbus interface to connect to a BMS By digitally monitoring the running current, the response time of the BiANCO NXT SPC is superior to traditional analogue overload methods.

Downloads
Product Information and Data Sheets
Download Product Information & Data Sheets v1.0
Operation and Installation Manuals
Download Operation & Installation Manuals v1.0
Certificates & Compliance Information
Download Certificates & Compliance Information v1.0
