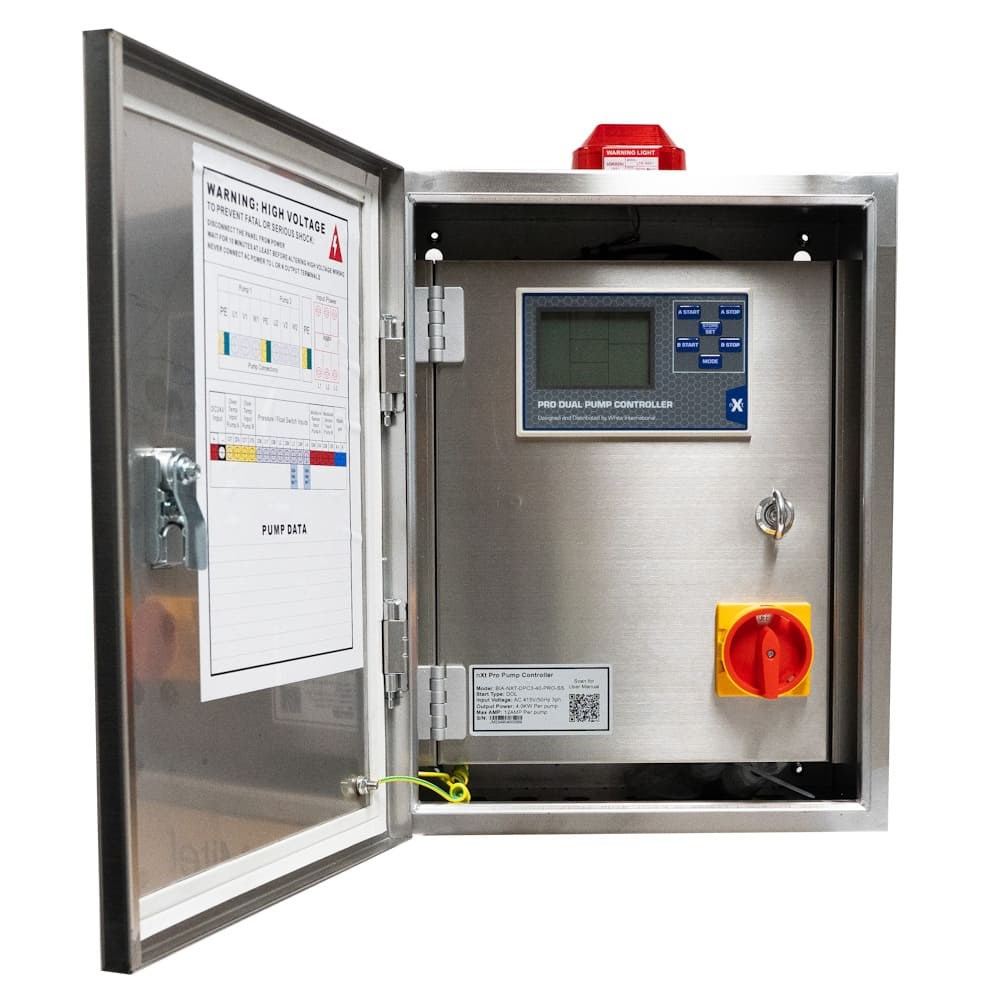

The BiANCO NXT-DPC PRO SS (Dual Pump Controller) is a module intended to control and protect a pair of three phase pumps up to a nominal 4.0 kW ea. The user can select a control logic sequence to match their application and enjoy the benefits of superior control and protection for the pump.
There are 3 primary control logic modes
- ‘Drainage’ where control is concentrated at the source
- ‘Boosting’, which references pressure switching for control
- ‘Transfer,’ which is a mix of source and destination control

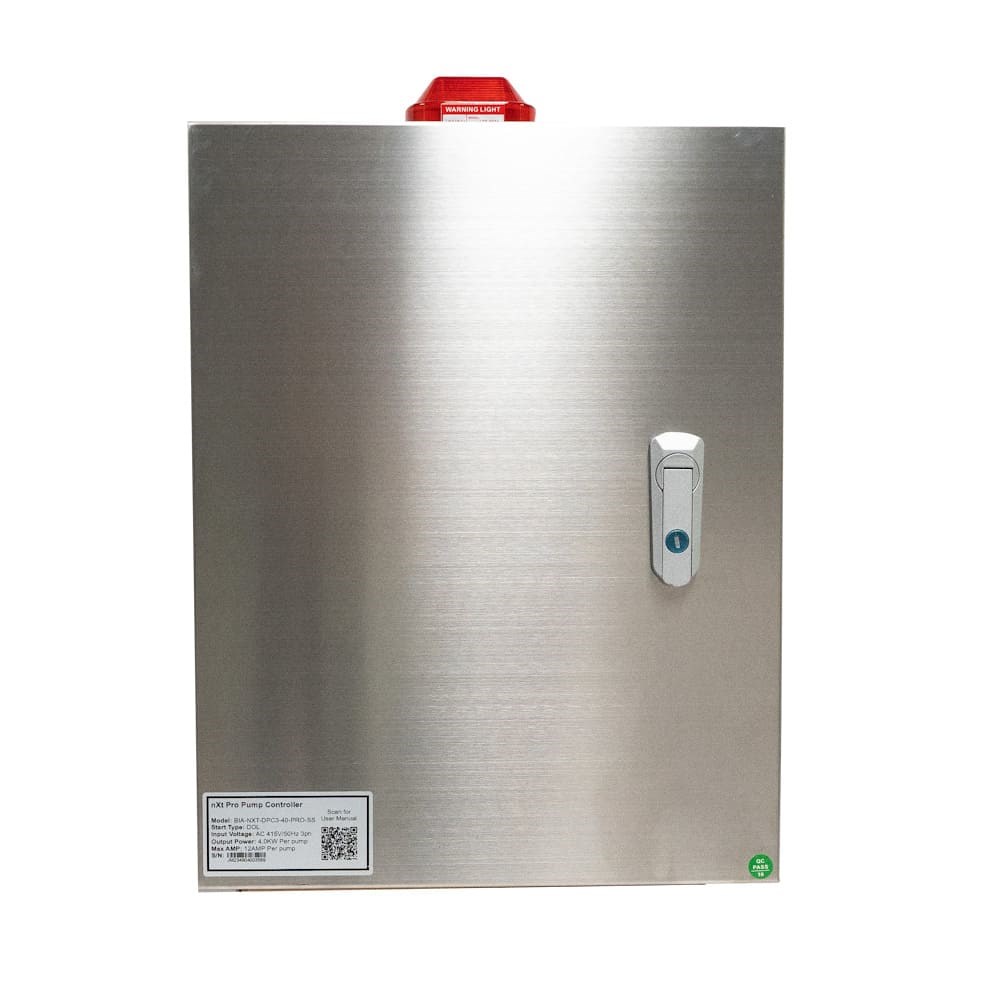

NXT-DPC PRO SS has 2 x passive dry contacts and is equipped with a RS485 modbus interface to connect to a BMS By digitally monitoring the running current, the response time of the BiANCO NXT DPC PRO SS is superior to traditional analogue overload methods. Stainless Steel Construction.
