BIA-NXT-DPC1-22-PRO-SS - Dual Pump Control Panel 240V 0.37 - 2.2kW - Dual Door Inc Ext Isolator

Order Code: 811368

Print
Product Code
BIA-NXT-DPC1-22-PRO-SS
RRP: $1980.00 incl. GST
Find Your Nearest Store
Technical Specifications
Brand Bianco iCON
Product Type Controller
Kilo Watts 2.2
Volts 240 V
Pack Weight (KG):
0.00
Description

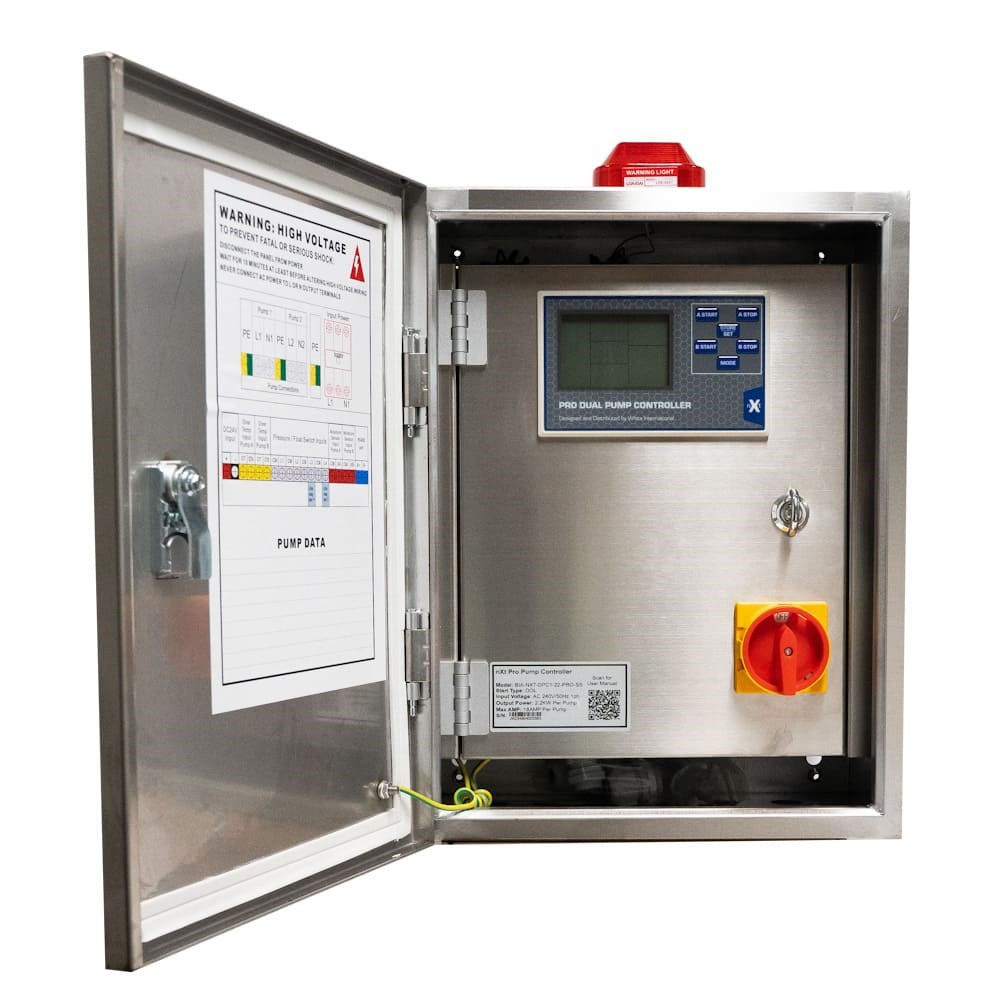

The BiANCO NXT-DPC PRO SS (Dual Pump Controller) is a module intended to control and protect a pair of single phase pumps up to a nominal 2.2 kW ea. The user can select a control logic sequence to match their application and enjoy the benefits of superior control and protection for the pump.

There are 3 primary control logic modes
  • ‘Drainage’ where control is concentrated at the source
  • ‘Boosting’, which references pressure switching for control
  • ‘Transfer,’ which is a mix of source and destination control

NXT-DPC PRO SS has 2 x passive dry contacts and is equipped with a RS485 modbus interface to connect to a BMS By digitally monitoring the running current, the response time of the BiANCO NXT DPC PRO SS is superior to traditional analogue overload methods. Stainless Steel Construction.
