Order Code: 813072

RRP: $2099.00 incl. GST Find Your Nearest Store

Technical Specifications

Brand	Welling & Crossley
Product Type	Portable Generator with RCD
Fuel	Petrol
Generator Type	AVR Generator
Frame Type	Open Frame
Generator Rating (kVA)	8.75
Rated AC Output (W)	6500

Description

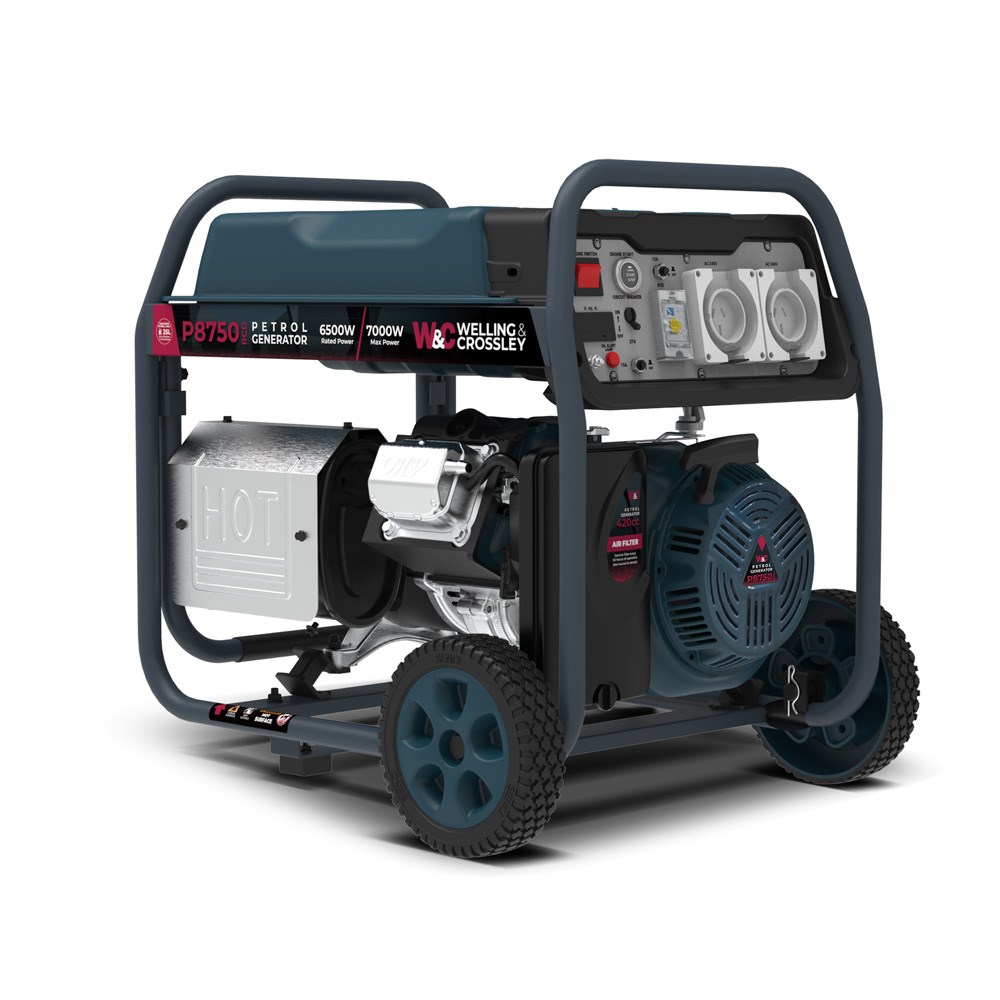

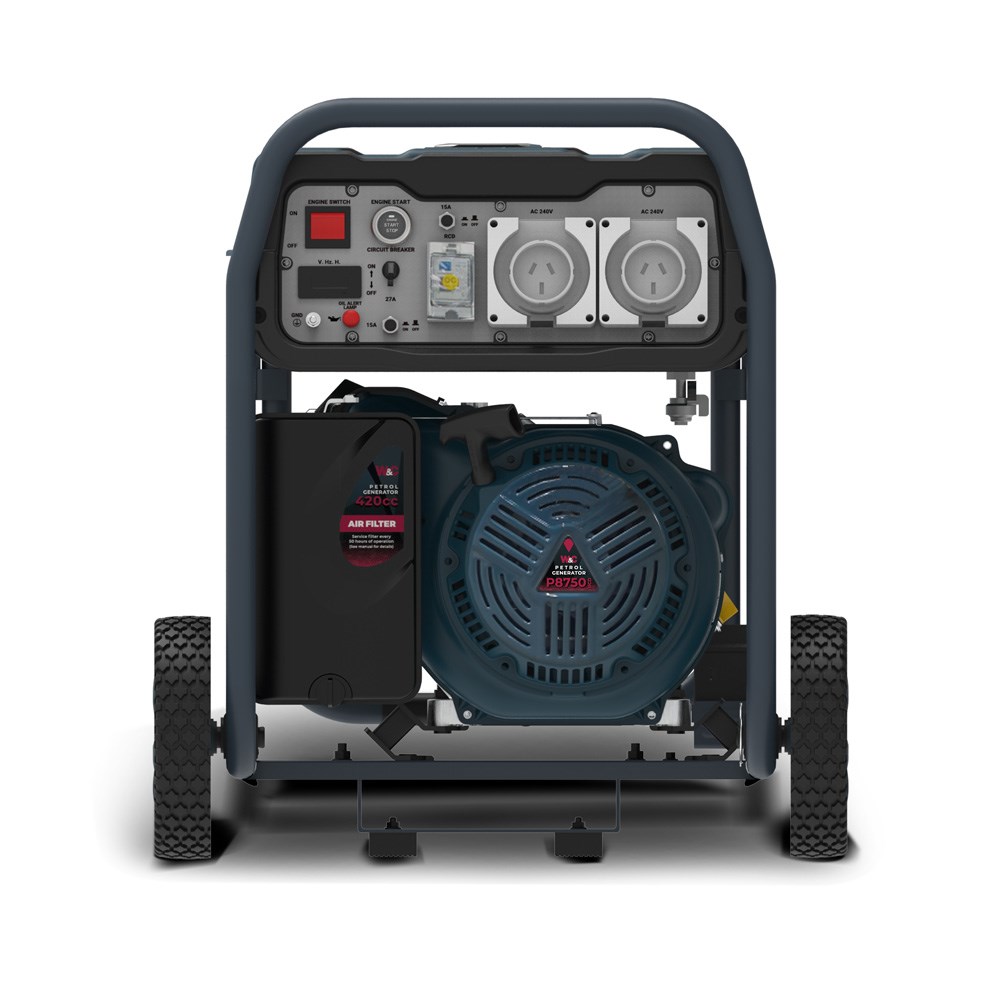

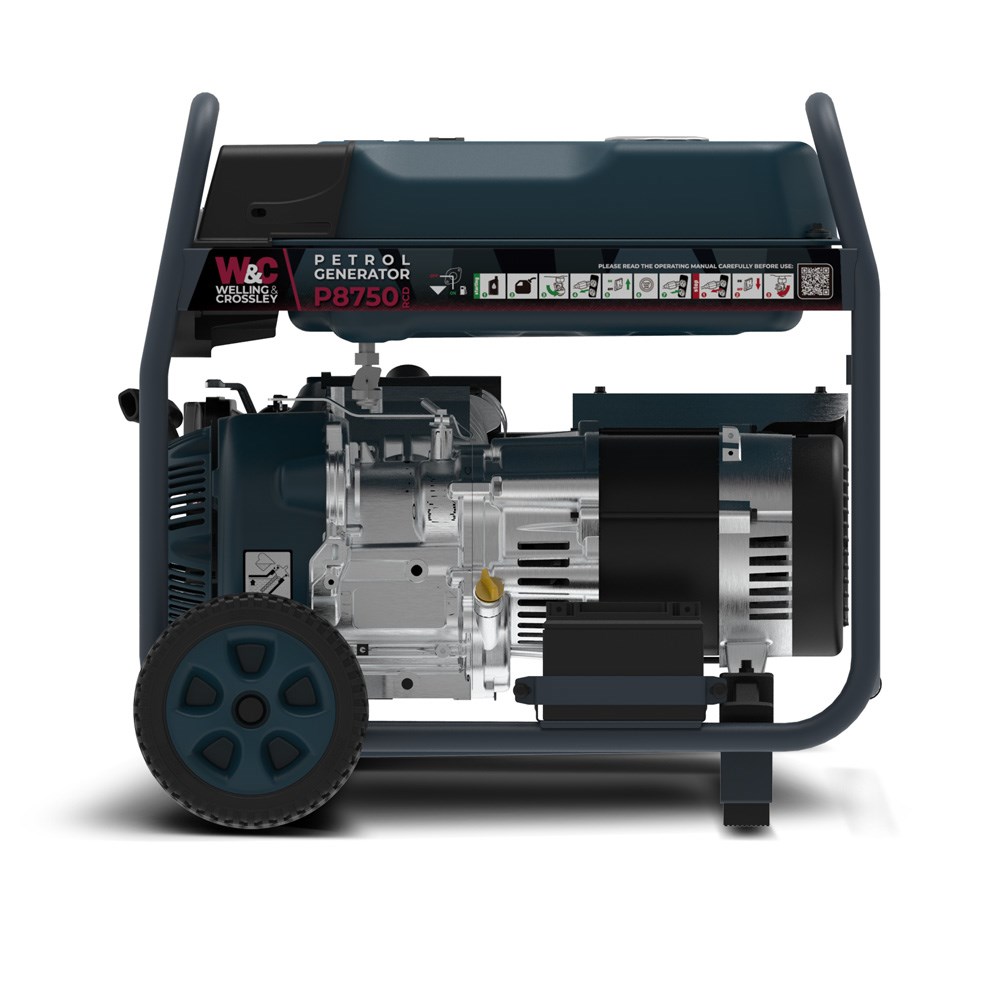

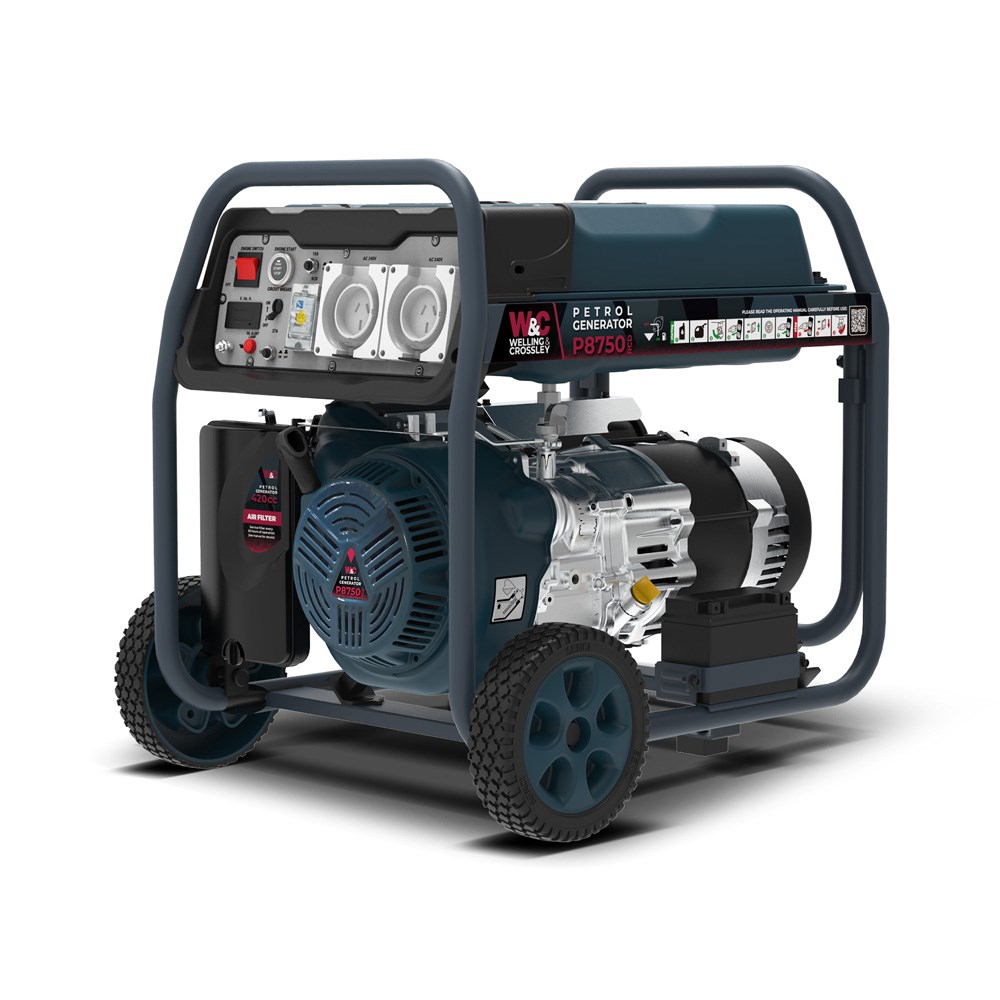

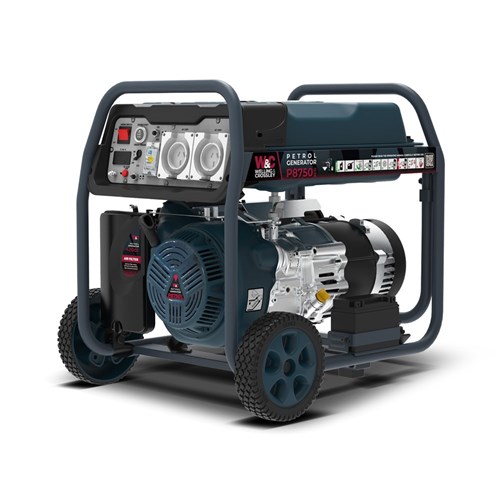

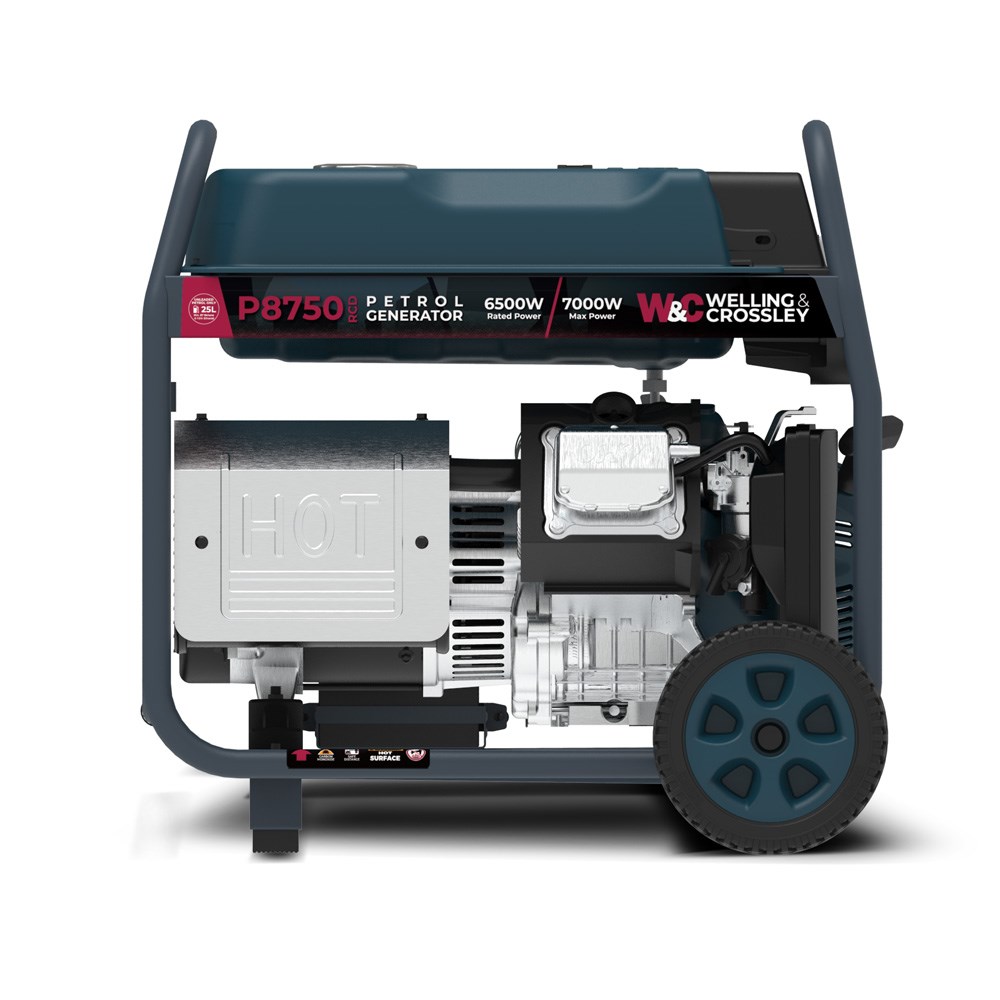

The Welling and Crossley P8750RCD is an AVR (Automatic Voltage Regulated) generator with E-start.

Supplied with a transport kit (handles and wheels), this generator is Euro 5 emissions compliant. The generously sized 25L fuel tank and economical motor allow for longer run times.

Equipped with a built-in RCD (Residual Current Device), the P8750RCD provides an added layer of electrical safety by automatically disconnecting the power supply in the event of a fault or leakage current, protecting users from electric shock and equipment damage.

The WC-P8750RCD packs a lot of power in a compact footprint, combining reliability, efficiency, and safety for demanding worksite or backup power applications.

Features

RCD (Residual Current Device):
An RCD is a safety device that quickly cuts off the power supply if it detects an imbalance between live and neutral currents - which can indicate a leakage current through a person or a fault in the circuit. This helps to prevent electric shocks.

AVR (Automatic Voltage Regulator):
An AVR stabilises the output voltage of a generator, preventing fluctuations that can damage electronic equipment. It ensures a steady and consistent voltage level, enhancing the safety and reliability of the generator.

2-Wire Start:
This feature allows the generator to be started remotely from the closing of a remote contact. This could be an automatic transfer switch (ATS) in the event of a power failure, a float switch or any device that can provide a closed circuit as a start signal

Fuel Efficient:
This refers to how much power a generator can produce relative to its fuel consumption. Fuel-efficient generators run longer on less fuel, saving money and reducing the frequency of refuelling, which is particularly important for extended use.

Australia has emissions standards for outdoor power equipment. Euro 5 ensures compliance with these regulations.

Multiple start options: Recoil start, push-button electric start, wireless remote start, 2-wire remote start
Transport kit included: Fold-out wheelbarrow style handle and large wheels
Powerful & efficient: Air cooled OHV 4-Stroke engines with large fuel tanks
Digital V/F/T display: Easy-to-read display shows Volts, Frequency and Time

Applications

Worksite Power

DIY Workshop

Outdoor Events

Market Stalls & Mobile Business

Farming & Agriculture

Powering tools, lights or machinery in work areas and construction sites
Off-grid solar pumping system back-up
Outdoor events for lights, sound systems etc
Mobile businesses or market stalls for powering small appliances

RCDs cannot be used with power boards or equipment with built-in RCD protection

Technical Specifications
Product Code	813072
Model Rating	8.75kVA
Max AC Output	7000W
Rated AC Output	6500W
Voltage	240V AC
Type	Open Frame AVR
Frequency	50Hz
Connections	2 x IP66 15A
Engine	WC-420
Type	Single cylinder, 4 stroke, OHV air-cooled petrol
Displacement	420cc
Speed	3000rpm
Low Oil Protection / Warning	Fitted
Ignition System	Transistor Ignition
Starting Type	Recoil / Electronic / 2-Wire / Wireless Remote
Fuel Tank Capacity	25L
Fuel Consumption	1.48 L/hr @ ¼ load
Dimensions & Performance
Product Dimensions	700 x 660 x 660mm
Dry Weight	90kg
Operating time at 25% Load	16.9hr
Noise Level @ 7m	72 dBA
Limited Warranty	2 Years
Additional
Oil	1.1L SAE10W-30
Spark Plug	Torch F6TC, Champion RN9YC
Fuel Type	Petrol - 91 octane unleaded
Power Factor	0.8
Packaging Dimensions	710 x 535 x 590mm
