BIA-PDP4-SOLAR1500 - Helical Pump Kit 4" Solar Pump 46L/min 140M 2.2kW

Code: 808697

Print
Product Code
BIA PDP4-SOLAR1500
RRP: $4400.00 incl. GST
Find Your Nearest Store
Technical Specifications
Brand Bianco iCON
Product Type Solar Powered Borehole Pump
Suitable For Solar
Flow Rate (L/min) 46 L/min
Kilo Watts 2.2 kW
Max Head (m) 140 m
Port Size Outlet 1" BSPM
Pack Weight (KG):
20.00
Description

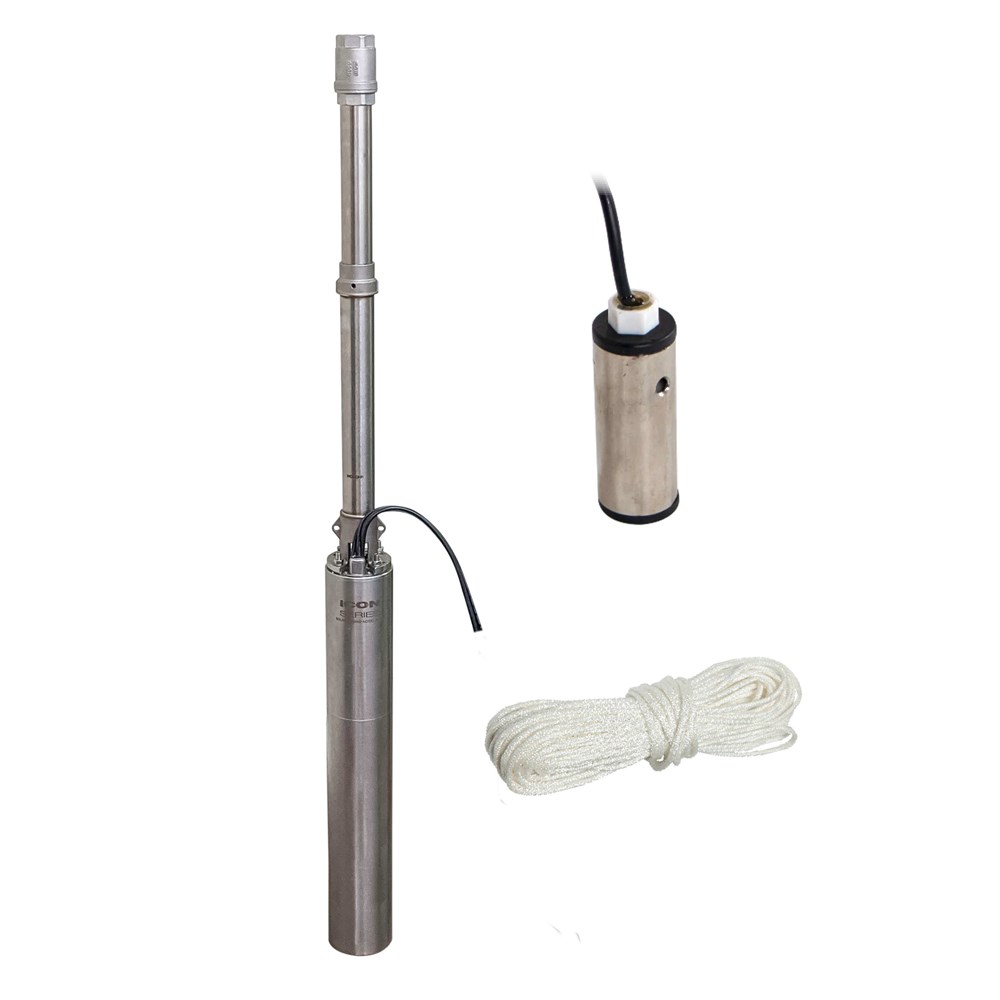

4” HELICAL SOLAR PUMP COMPLETE SOLUTION KIT

The 4” Helical Rotor iSOLAR PDP4 increases the scope and flexibility of the iSOLAR product suite. The highly efficient and innovative iSOLAR M220HR motor, and the positive displacement wet end exploits the versatility of the motor’s operating range to deliver water even when solar conditions are less than optimum.

The iSOLAR 4” PDP can be installed down a bore, in a tank or fitted to a pontoon to supply from an open body of water.



BIA-PDP4 SOLAR1500
Motor 2.2 kW
Rated Motor Speed 3600rpm
Degree of Protection IP68
Max Head 140m
Max Flow 46 L/min
Min Fluid Temp 10°C
Min Fluid Temp 40°C
DC Voltage and Current
Vmpp 60-380V
Voc 60-440V
Amps 12A
AC Voltage and Current
Volts 90-280V
Amps 10A

Solar array recommendation indicative only Solar inputs must respect the VOC and Max Current (Amperage) values



Renewable Solar Energy

A typical solar pumping system consists of the following: A solar array to convert sunlight to electricity, a controller to manage the power from the array to the motor which rotates the pump to move the water to where you need it most.
