Code: 804687

Product Code
RRP: $395.00

Where to Buy

Find Your Nearest Store Buy Online
Technical Specifications
Product Type TWX7 Module
Brand Triton
Suitable For TRI-TWX7LB
RPM 9500 rpm
Length 660 mm
Taps Work Centre
Volts 220 - 240 V
Warranty (months) Lifetime
Watts 910 W
Width 410 mm
Blade Diameter 127 mm
Blade Kerf 2.2 mm
Bore Diameter 17 mm
Height 265 mm
Pack Weight

The majority of table saw work involves smaller components from sheet or strip materials, and the project saw module makes an ideal, very safe alternative to a full-scale table saw.

The project saw module is a professional solution for precision rip and cross cutting and trimming of hard and soft wood as well as laminate flooring, skirting and loft boards.

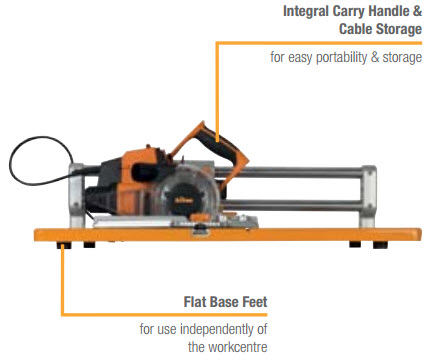

It can be used independently of the Workcentre in confined spaces, or fixed into the TWX7 platform for a stable surface at the optimum working height.

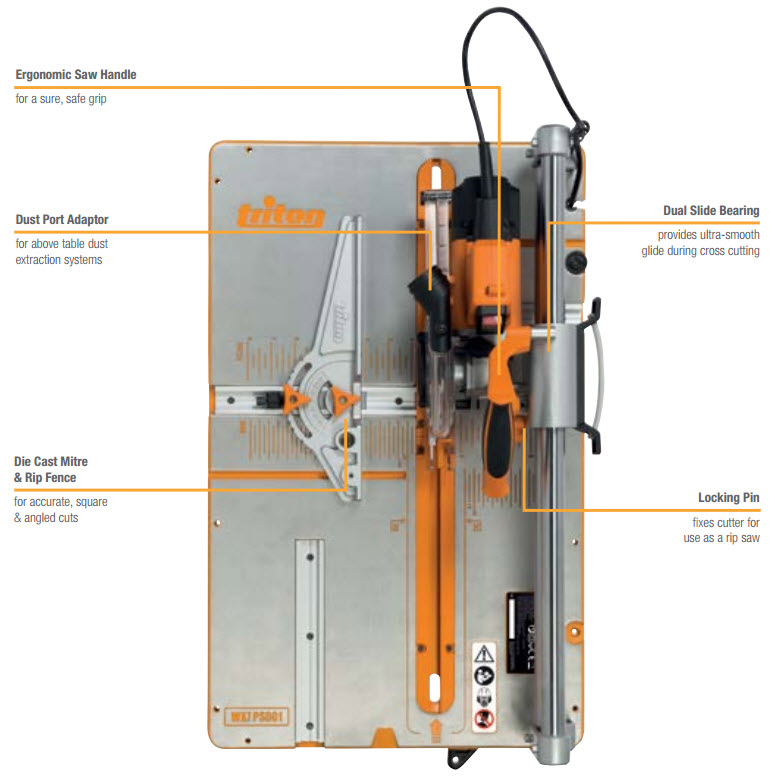

A die cast mitre and rip fence, together with a quick-release clamp, means you can easily achieve perfect angled cuts. With a fully enclosed blade and excellent dust extraction this is the ideal table saw for smaller projects.

Technical Specifications
Maximum Depth of Cut0-22mm
Blade Size127mm
Module Width410mm
Module Length660mm
Max Module Depth24.4mm
Work Surface Thickness+25/-125mm
Work Surface MaterialCast Aluminium

Product Brochure

Precision has been at the very heart of Triton’s philosophy since 1976, when the first Workcentre was produced. Born in Australia, Triton tools continue to be built with this philosophy at the forefront of every project. From award-winning routers and laser-guided circular saws, to the industry-renowned Superjaws and the new innovative TWX7 Workcentre, you can rely on Triton for tools that provide an accurate, quality finish every time.

Download Brochure

Product Information and Data Sheets
Download Product Information & Data Sheets v1.0
