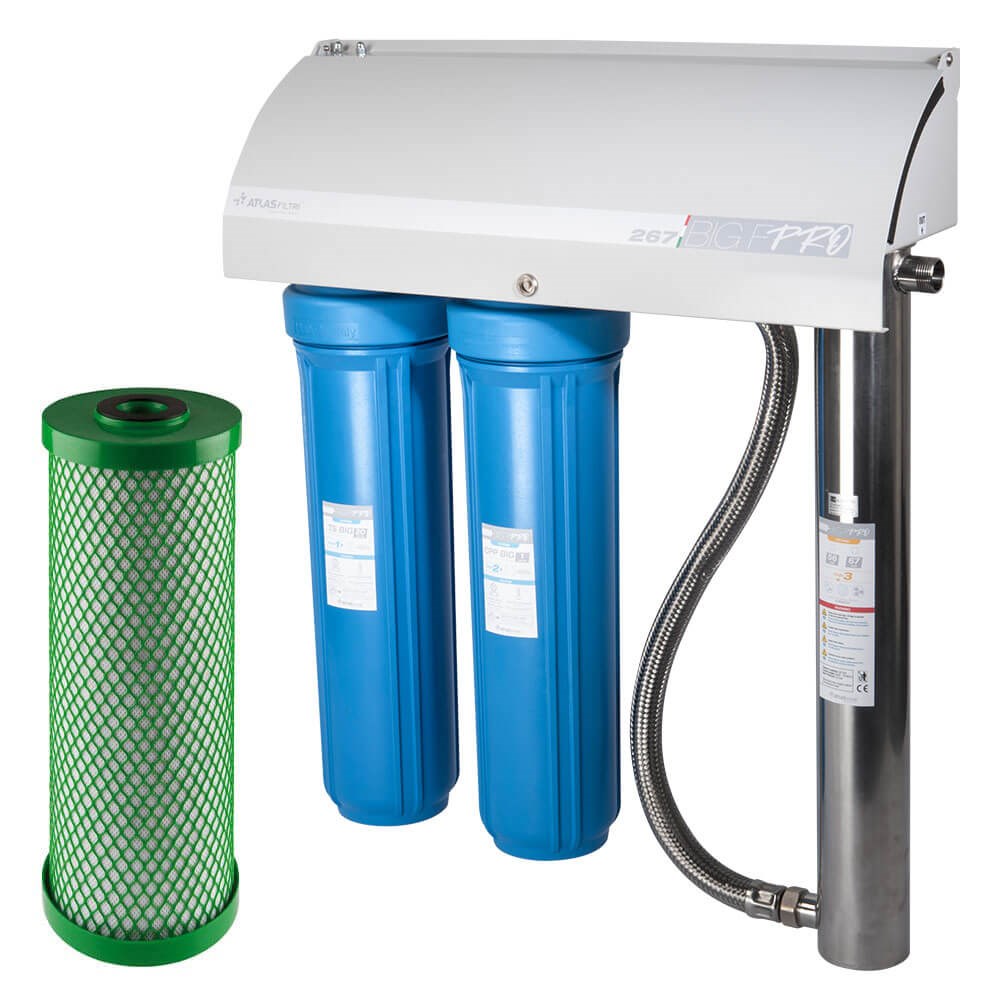

Atlas Filtri BIG F Pro 267 with 5 Mic Carbon 20" BIG - UVFiltration System

Order Code: 811216

Print
Product Code
ATF-BIGFPRO267-C
RRP: $2805.00 incl. GST
Find Your Nearest Store
Technical Specifications
Brand Atlas Filtri
Product Type UV Units
Flow Rate (L/min) 95
Material Reinforced Polypropylene Filter Housings
Nominal Micron Rating 1
Inlet/Outlet 1"
Max Pressure (bar) 8.3
Min Temp (degrees celsius) 4
Max Temp (degrees celsius) 45
Application Whole Supply
Filter 20" Big
Pack Weight (KG):
0.00
Description

Big F Pro Series UV

The Big F Pro series UV kits are all Italian Made Plug and Play UV units.
The included Italian pre-filters reduce sediment to prevent it from sheltering bugs from the UV light. The Italian UV chamber eliminates harmful pathogens, including bacteria, protozoa (parasites) and some viruses and features an IP54 rated controller.

The units come pre-plumbed, with a single inlet/outlet, mounted on a single bracket under a lockable cover which can protect the unit from weather.

When do I need UV?

If you are on a rural supply (e.g. rain water, bore water etc) that has no protection, installing a UV is an insurance policy. Unfortunately we cannot see harmful bugs like bacteria, parasites or viruses and only find out they have been present if we become unwell. It is not practical to test our water every day, so installing a Big F Pro UV gives you the peace of mind that you are protecting the health of yourself, your family and visitors.

Of course if you have had your water tested and found harmful bacteria present, then you should boil your water until you have a Big F Pro UV installed to protect you from any future contamination.



Big F Pro 267
Flow Rate/Dose 95lpm@30mJ/cm2cm2
Filter Cartridge 1 TS 20 Micron Pleated 20” Big (Order 807308)
Filter Cartridge 2 Carbon Block 5 Micron 20” Big (Order 810480)
Power Consumption 61Watts
Power Cable Length 2m
Inlet/Outlet 1” BSPF Inlet / 1” BSPM Outlet
UV Reactor Material 304 Stainless Steel
UV Reactor/Controller Protection Class IP54
Shipping Weight 20kg

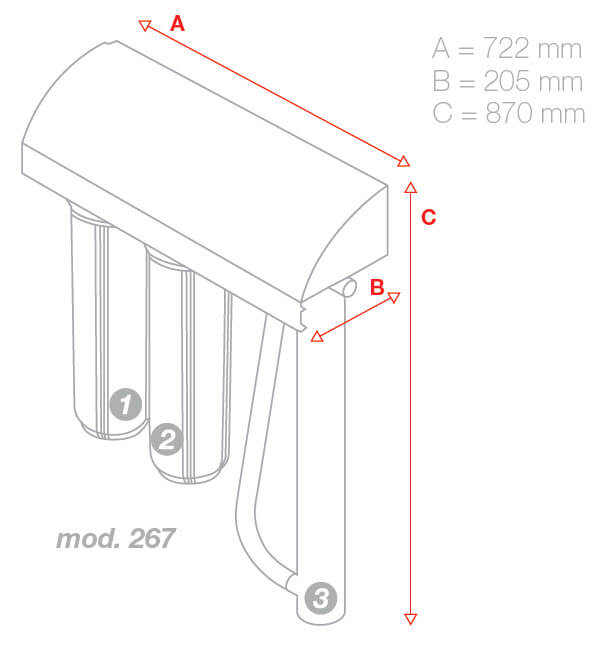

Measurements (Height x Width x Depth) 870mm x 722mm x 205mm




Features:

  • Eco-Friendly, Chemical Free Disinfection
  • Italian Made
  • IP54 Rated Control Panel
  • Digital Monitor Display
  • Lamp Life Counter
  • Acoustic Alarm for Lamp Replacement
  • Lockable, Weather Resistant Cover
  • High Max Pressure Rating of 8.3bar
  • Reversible Mounting, choose your flow direction

Benefits:

  • Safe, chemical free, disinfected Water which protects the health of you and your family from harmful microorganisms.
  • Italian made means Quality.
  • The lockable weather resistant cover protects your unit from children, vandalism and can be installed where you need it most.
  • The reversible mounting means you can have a tidy install every time, no need to run extra pipe.
  • The digital display and audible alarm keep you safe by letting you know if your lamp is working and when it needs to be changed.
  • The pre-plumbed configuration means a quick, easy, tidy looking installation and you can be sure that you have the correct size filters in relation to the UV.

Incoming Water Quality Parameters

The water which enters the unit must meet the specifications below for the unit to be effective and warranty to apply. If the raw water does not meet these parameters, additional pre-treatment may be required.

Incoming Water Quality Parameter
UV Transmittance >95%
Total Hardness <120mg/L
Iron <0.3mg/L
Manganese <0.05mg/L
Hydrogen Sulphide <0.3mg/L

Operating Conditions
Power Supply AC 110-240V, 50/60Hz
Max Working Pressure 8.3bar
Working Temperature 4-45°C (Protect from Freezing)
UV Dose 30-40mJ/cm2



Maintenance

Service Intervals
Filter Cartridges 3-12 Monthly or when pressure loss reaches 1bar (15PSI)
UV Lamp Annually (9,000 hours)
UV Quartz Sleeve Cleaning is advised at least quarterly. This may vary depending on your water quality – seek the advice of your supplier for your situation
Quartz Sleeve O-Ring Annually (unless damaged earlier)
