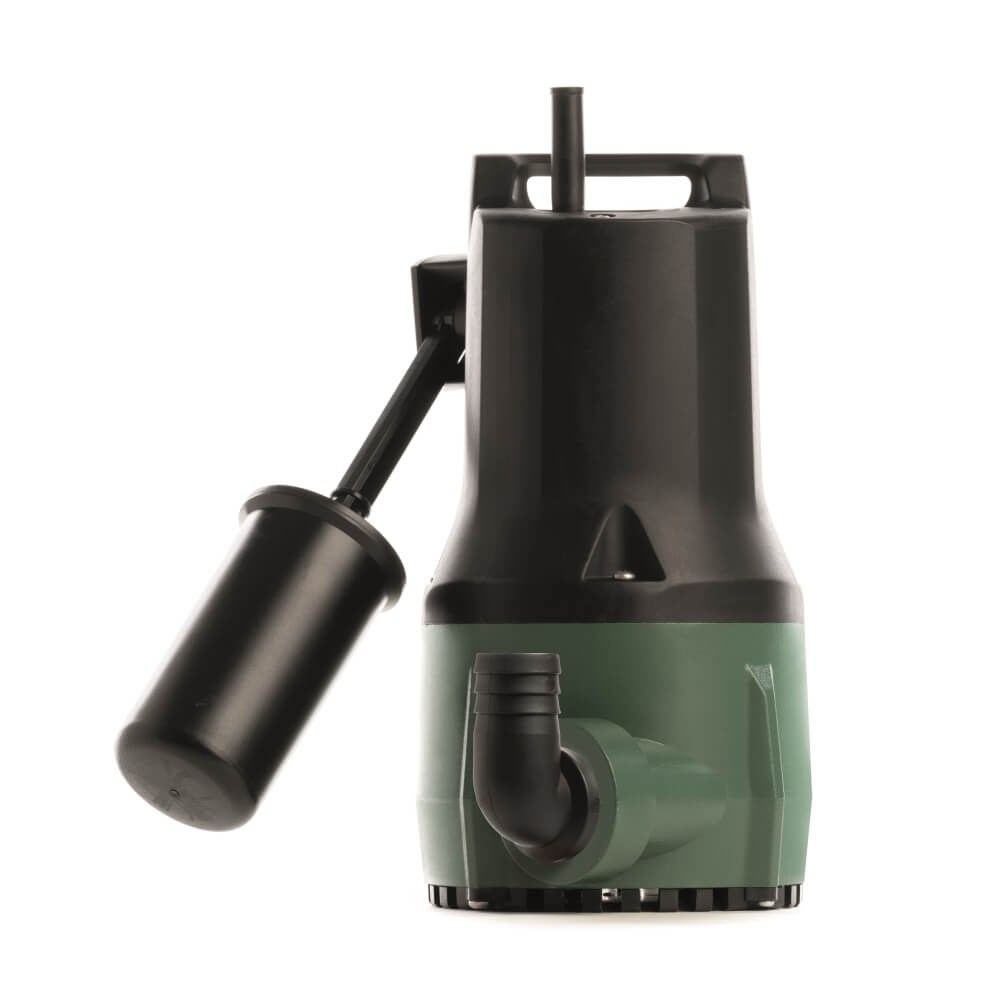

DAB-NOVA180A - Submersible Wastewater Pump with Float - 80L/min 5m 0.22kW 240V

Order Code: 701750

Print
Product Code
DAB-NOVA180A
RRP: $616.00 incl. GST
Find Your Nearest Store
Technical Specifications
Brand DAB Pumps
Bar 0.5 Bar
Flow Range Category a. 0 - 99 L/min
Flow Rate (L/min) 80 L/min
Float Float Included
Hp 0.3 Hp
Kilo Watts 0.22 kW
Head Range Category a. 0 - 39 m
Max Head (m) 5 m
Port Size Outlet 1 1/4" BSPF outlet
Volts 240 V
Watts 220 W
Pack Weight (KG):
4.20
Description
Submersible Drainage Pumps

Suitable for all dewatering tasks including pumping out sumps, flooded areas and drawing water from wells.

0.22kW, 0.3hp, 240V, AUTOMATIC, max hd 5m, max flow 80L/m, rigid float arm, 1¼" BSPF outlet

2 Year DAB Pumps Warranty
Features

The NOVA line with open impeller is suited to all clean and waste water with solids measuring up to 10 mm.
It can be used to empty tanks, vats or cisterns, drain flooded basements, cellars and garages, and prevent flooding when installed in rainwater wells.
It can also be used as a portable pump in emergencies to drain water out of flooded rooms.

OPERATING RANGE

Flow rate up to 16 m3/h
with head up to 10.2 metres

LIQUID TEMPERATURE RANGE

from 0 °C to +35 °C for domestic use
from 0 °C to +50 °C for other uses

OUTPUT

1” ¼ F

Technical Data
ModelP2 (KWH Max (m)Q Max (L/min)Free Passage
NOVA 1800.205805mm
NOVA 2000.226.12005mm
NOVA 3000.226.820010mm
NOVA 6000.5510.525010mm
Spare Parts
Code
Part Number
Description
702701
DABSR00008723
702690
DABSR00008605
