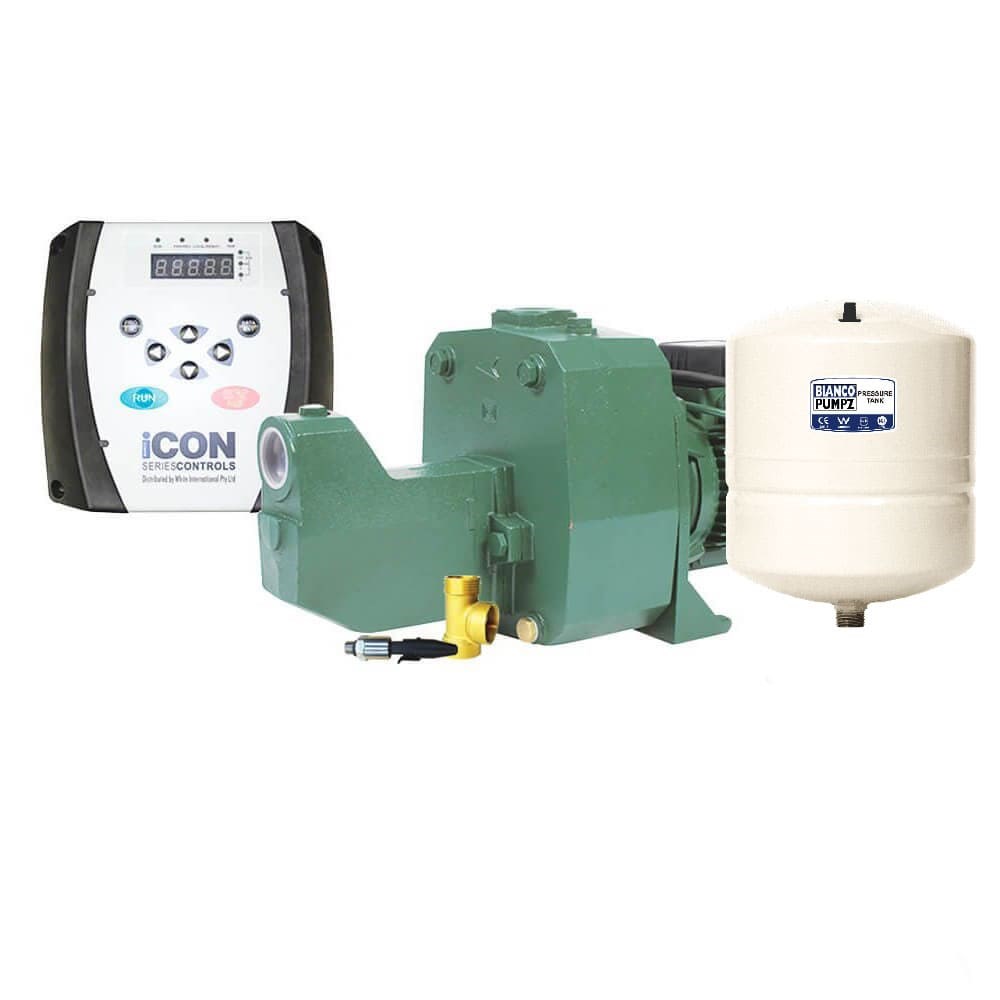

DAB-151MVFD - DAB VFD Pressure System Inc Transducer, 3 way tee, 18L Pressure Tank & Drive

Order Code: 805914

Print
Product Code
DAB-151MVFD
RRP: $4001.80 incl. GST
Find Your Nearest Store
Product Documents Find a Service Agent
Technical Specifications
Brand DAB Pumps
Product Type Multistage Jet Pump
Suitable For Tank Transfer
Bar 6.1 Bar
Flow Range Category a. 0 - 99 L/min
Flow Rate (L/min) 75 L/min
Hp 1.5 Hp
kPa 618 kPa
Kilo Watts 1.1 kW
Casing Material Cast Iron
Head Range Category c. 60 - 99 m
Max Head (m) 61 m
Port Size Inlet 1 1/4" BSPF inlet
Port Size Outlet 1" BSPF outlet
Powered Electric
Warranty (months) 24 Months
Volts 240 V
Watts 1100 W
Pack Weight (KG):
0.00
Description

DAB and ICON VFD PUMP KIT

DAB heavy duty jet pumps and icon wall mount plug and play iDrives Includes transducer, 3 way tee, 18 litre pressure tank pre-charged to suit, and drive pre-programmed to suit

1.1kW, 1.5hp, 240V, max hd 61m, max flow 75L/m Ports 1 1/4” BSPF In, 1" BSPF Out

Bianco Tanks are highly constructed pressure tanks suitable for most domestic and commercial applications.

  • Nominal volume: 18L
  • Nominal Draw-off: 6L
  • Continuous max. temp 90°C
  • Continuous max. pressure: 10 Bar (145PSI)
  • Pre-charge: 4 Bar (58PSI)
  • Diameter: 279 mm
  • Height: 375mm
  • Net Weight: 3.4Kg
  • System Connection: GI
  • Colour: Almond
