DAB-3ESYBOX MAX 60/120M - Triple Pump With Dock Pressure Pump System 870 L/M 80M 3X2.68KW 240V

Order Code: 809541

Print
Product Code

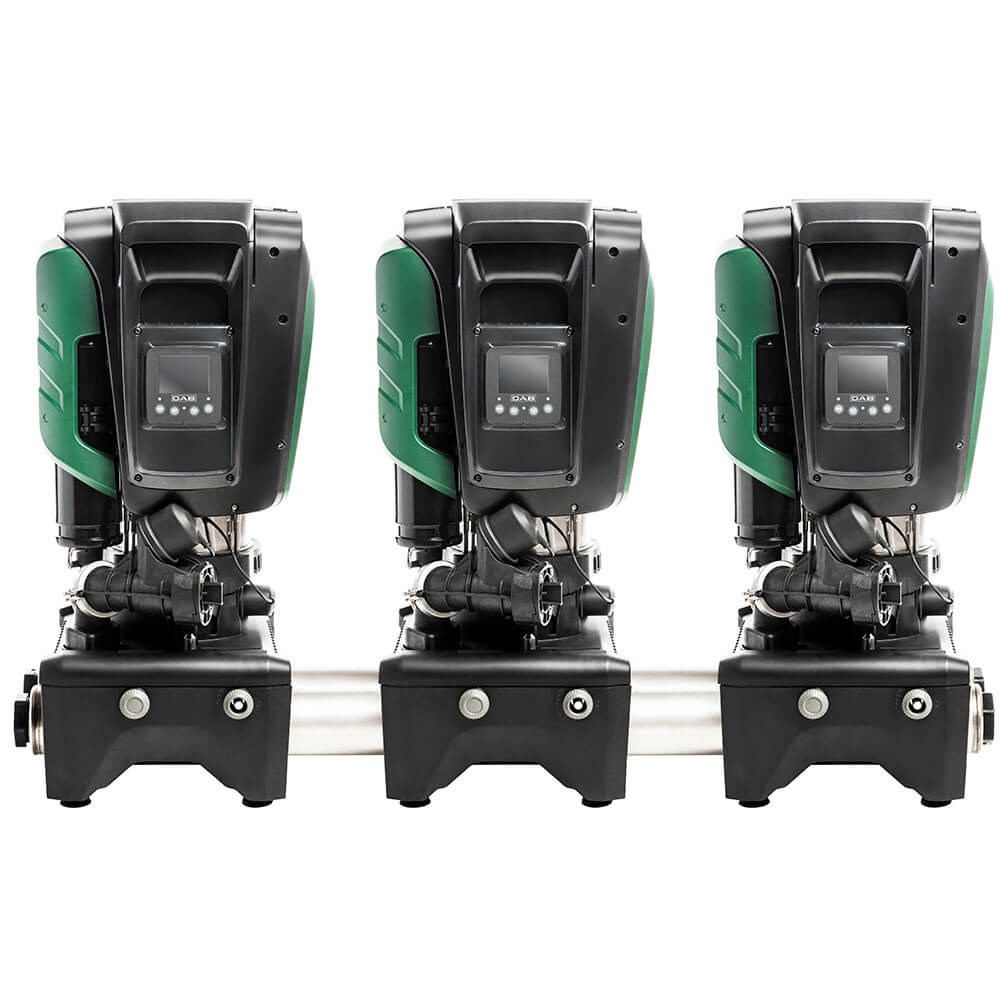

DAB-3ESYBOX MAX 60/120M
RRP: $24750.00 incl. GST
Find Your Nearest Store
Technical Specifications
Brand DAB Pumps
Bar 7.8
Approval Approved For Drinking Water
Flow Range Category f. 500 - 999 L/min
Flow Rate (L/min) 870 L/min
Kilo Watts 3x2.68 kW
Head Range Category c. 60 - 99 m
Max Head (m) 80 m
Volts 240 V
Pack Weight (KG):
114.00
Description

Triple VFD Pump Set

Max head 80m, max flow 870L/m, 2" BSPF

Features

The DAB ESYBOX MAX is the latest innovation in the DAB Esyline range.

Integrated pumping systems for pressurization in commercial building services industry and for rural and horticultural applications. Available in two power sizes, it consists of modular elements that allow different configurations to cover the needs of large residential, medium/large apartments and high rise buildings (even over 14 floors).

Each unit consists of the hydraulic connection base and the pumping unit which includes an electronic vertical multi-impeller pump, display, Wi-Fi module, pressure sensors, non-return valve on delivery and an expansion tank. The innovative support base of the pumping unit and the wireless communication between the pumps make it possible to assemble the unit directly at the installation site, even by one person. The variable frequency drive keeps the pressure constant according to the load and thanks to the water-cooled permanent magnet motor, it allows greater efficiency, silence and energy savings.

Video



Technical Performance Data
Technical Specifications
Flow rate: Up to 290 lpm (for single unit)
Head: 113 m
Liquid temperature: +50°C
Maximum ambient temperature: +55°C
Maximum inlet pressure: 5 Bar
Operation pressure: 12 Bar / 1200 Kpa
Constant pressure range: 1-12 Bar (3 bar by default)
Motor protection class: IPX5
Motor insulation class: F
Impeller material: Technopolymer
Single phase power input: 208-240V 50/60 Hz
Three phase power input: 380-480V 50/60 Hz
Type of installation: Fixed In Vertical Position
Type of pumped liquid:
  • Clean
  • Free From Solid Or Abrasive Substances
  • Non-Viscous
  • Non-Aggressive
  • Non-Crystallised
  • Chemically Neutral


    Key Features
    1 DISPLAY
    2 INVERTER
    3 MODULE WIFI/BLUETOOTH
    4 PRESSURE SENSOR (delivery side)
    5 PRESSURE SENSOR (suction side)
    6 NON-RETURN VALVE
    7 2L EXPANSION TANK
    8 IMPELLERS
    9 HYDRAULICS CONNECTIONS
    10 FAST CONNECTION TOOL
    11 WATER COOLED PERMANENT MAGNET MOTOR
    12 HANDLES

    Accessories

    ESY I/O

    The electronic expansion module allows Esybox Max to interface with the external input/output devices (eg: float switch, pressure switch, remote alarm) and with the BMS world (Building Management System).

    CONTROL PANEL

    Electrical connection panels for 2 or 3 pumps complete with magnetothermic switches for powering multi-pump units. It can be installed on the wall or directly to Esybox Max units using the dedicated pillar kit.

    PILLAR KIT

    Useful for mounting the control panel EG on board of the 2 or 3 Esydock max.

    JOINT KIT

    Kit consisting of 2 pieces of 3-piece unions and 2 pieces of 2” nipples to connect the delivery and suction of a pair of 2 esydock max to create 4-unit esybox groups.

    DAB Product Selector

    DNA (DAB Navigator Application) lets you search pumps by hydraulic performances, model or article number. You can obtain data sheets, spare parts information, user guides and other technical documentation.

    The free registration allows you to save projects and add custom articles to your quotations.
