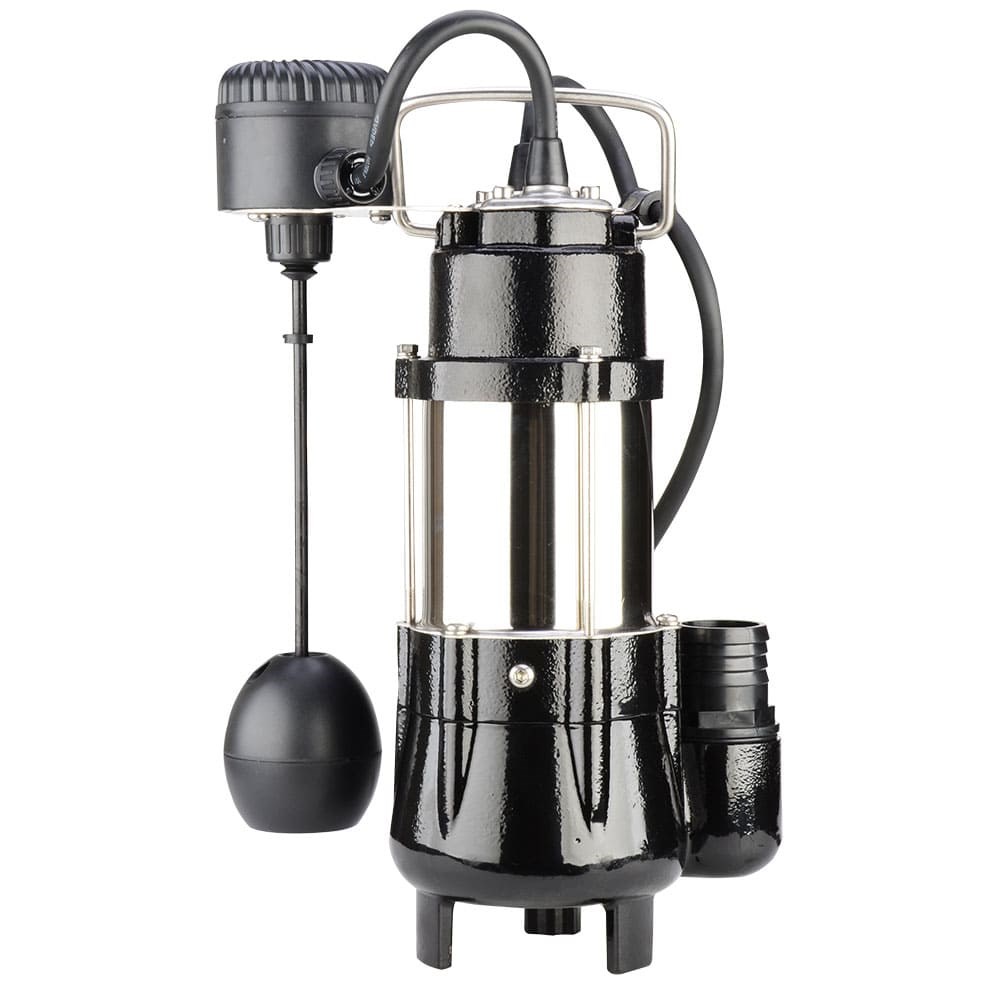

Claytech B7XF - Drainage Pump with Fixed Float 7m Head 133 L/min

Order Code: 811527

Print
Product Code
CLA-B7XF
RRP: $239.00 incl. GST
Find Your Nearest Store
Product Documents
Technical Specifications
Brand ClayTech Pumps
Product Type Submersible Vortex Drainage Pump
Float Float Included
Max Flow (L/min) 133
Max Head (m) 7
Port Size Outlet 1 1/4"
Particle Size 15mm
Volts 240
Watts 180
Pack Weight (KG):
8.00
Description

The ClayTech B7XF is a rugged vortex type drainage pump fitted with a cast iron semi vortex impeller. With a free passage of 15mm this pump is suitable for small to medium dewatering or transfer of stormwaters and/or waters with non-abrasive solids or stringy material in suspension. The B7XF offers durability and efficiency ensuring reliable performance in demanding drainage tasks.

Features
  • Cast iron pump body for durability
  • Automatic Vertical Float Switch (Fixed)
  • Triple seal system: Dual Mechanical Seal (Graphite/Ceramic) and oil seal
  • Includes 1¼” hose tail adaptor
  • 240V single phase motor with in-built thermal proception
  • 10m H07RNF neoprene chemical and oil resistant cable
  • Pump particles up to 15mm
Applications:
  • Stormwater
  • Ponds
  • Drains
  • Ideal for greywater pump out and irrigation, sump emptying and septic transfer
  • Pumping waters with non-abrasive solids and stringy material in suspension drains
  • Swimming pool drainage
Downloads
Product Information and Data Sheets
Download Product Information & Data Sheets v1.0
Operation and Installation Manuals
Download Operation & Installation Manuals v1.0
Certificates & Compliance Information
Download Certificates & Compliance Information v1.0
