BIA-PDP3-SOLAR370 - Helical Pump Kit 3" Complete 25L/min 80M 0.37kW

Order Code: 808692

Print
Product Code
BIA PDP3-SOLAR370
RRP: $3520.00 incl. GST
Find Your Nearest Store
Technical Specifications
Brand Bianco iCON
Product Type Solar Powered Borehole Pump
Suitable For Solar
Flow Rate (L/min) 25 L/min
Kilo Watts 0.37 kW
Max Head (m) 80 m
Port Size Outlet 1" BSPM
Pack Weight (KG):
10.00
Description

3” HELICAL SOLAR PUMP COMPLETE SOLUTION KIT

The 3” helical rotor iSolar PDP range provides a ‘plug and play’ kit set solution that requires only moderate DIY skills to install and has little ongoing maintenance requirements.

The iSolar 3” PDP can be installed down a bore, in a tank or fitted to a pontoon to supply from an open body of water.

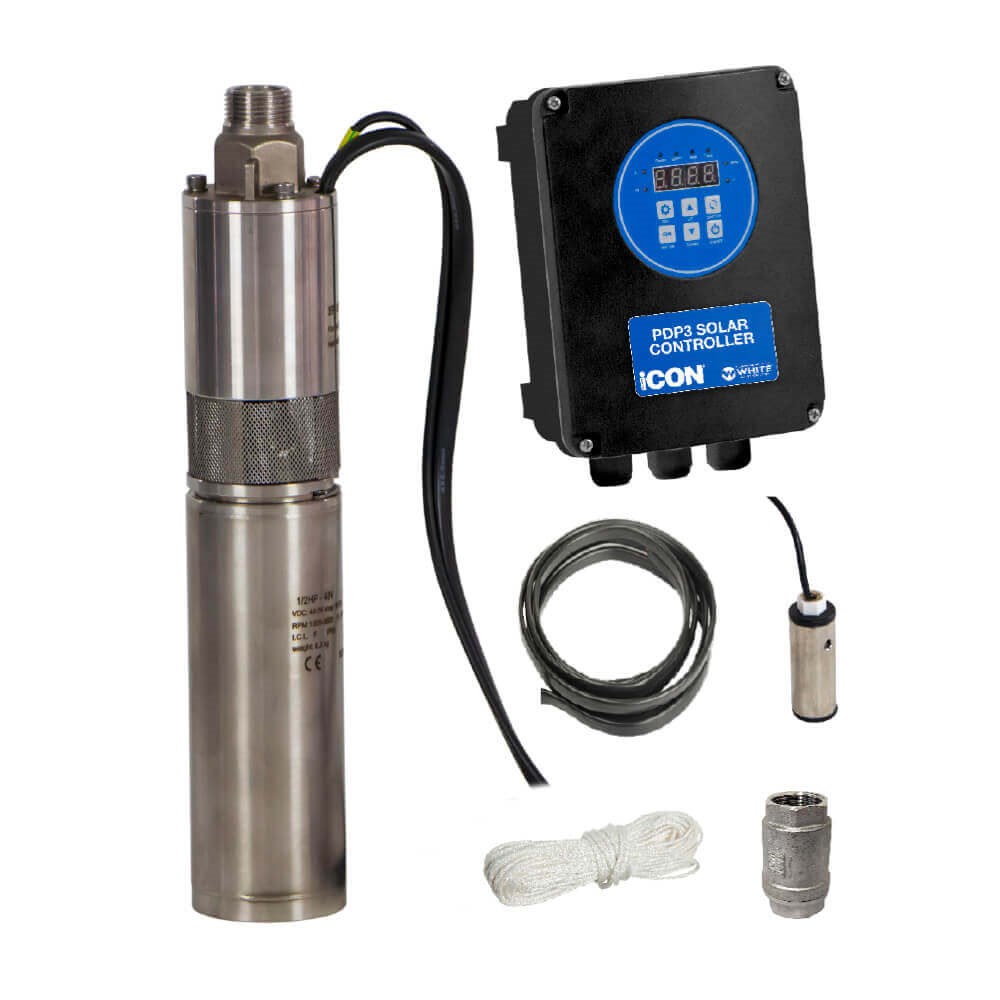

Kit Includes:

  • 3” iCON Solar Motor & 30 meters cable with 4 pin plug
  • 3” iCON Positive Displacement Pump
  • iCON PDP3 Solar Controller
  • Float/Level Switch with 30 meters cable
  • Nylon Safety Rope - 30 meters
  • Non-return Valve - 1”


BIA-PDP3 SOLAR370
Motor 0.37 kW
Max Head 80m
Max Flow 25 L/min
Controller 48V
Solar Array 2 x 300W in series
Vmp 40-76V
Max VOC 96V
Max Amps 15A

Solar array recommendation indicative only Solar inputs must respect the VOC and Max Current (Amperage) values



Windmill Replacement Market
  • Solar Pumps are low maintenance, easy to install, have little to no recurring costs and virtually operate themselves requiring only sunlight to pump water.
  • Windmills often require maintenance, repair and replacement of parts which is often expensive and labor intensive. Furthermore, if there is no wind there is no water.
  • A solar pump will be in use whenever there is sunlight, even on overcast and cloudy days.


Renewable Solar Energy

A typical solar pumping system consists of the following: A solar array to convert sunlight to electricity, a controller to manage the power from the array to the motor which rotates the pump to move the water to where you need it most.
